Public Member Functions | List of all members
argos::CSimulatedActuator Class Referenceabstract

The basic interface for a simulated actuator. More...

#include <actuator.h>

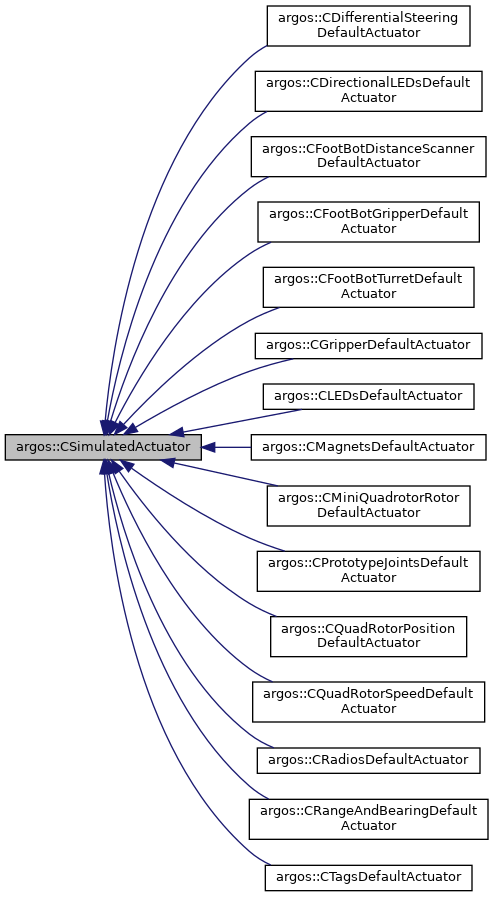

Inheritance diagram for argos::CSimulatedActuator:
Inheritance graph
[legend]

Public Member Functions

virtual ~CSimulatedActuator ()
 Class destructor. More...

virtual void SetRobot (CComposableEntity &c_entity)=0
 Sets the entity associated to this actuator. More...

virtual void Update ()=0
 Updates the state of the entity associated to this actuator. More...


Detailed Description

The basic interface for a simulated actuator.

To implement the simulated model of an actuator, you must define a class that inherits from both the control interface and this class.

See also
CCI_Actuator

Definition at line 24 of file actuator.h.

Constructor & Destructor Documentation

◆ ~CSimulatedActuator()

virtual argos::CSimulatedActuator::~CSimulatedActuator ( )
inlinevirtual

Class destructor.

Definition at line 31 of file actuator.h.

Member Function Documentation

◆ SetRobot()

virtual void argos::CSimulatedActuator::SetRobot ( CComposableEntity &  c_entity)
pure virtual

Sets the entity associated to this actuator.

When a controller is created, all the sensors and actuators are created, too. This function is called right before the Init() method of the actuator is called.

Parameters
c_entityThe entity to associate to this actuator.
See also
CComposableEntity
CControllableEntity::SetController()
CCI_Actuator::Init()

Implemented in argos::CPrototypeJointsDefaultActuator, argos::CMiniQuadrotorRotorDefaultActuator, argos::CTagsDefaultActuator, argos::CRangeAndBearingDefaultActuator, argos::CRadiosDefaultActuator, argos::CQuadRotorSpeedDefaultActuator, argos::CQuadRotorPositionDefaultActuator, argos::CMagnetsDefaultActuator, argos::CLEDsDefaultActuator, argos::CGripperDefaultActuator, argos::CDirectionalLEDsDefaultActuator, argos::CDifferentialSteeringDefaultActuator, argos::CFootBotTurretDefaultActuator, argos::CFootBotGripperDefaultActuator, and argos::CFootBotDistanceScannerDefaultActuator.

◆ Update()

virtual void argos::CSimulatedActuator::Update ( )
pure virtual

Updates the state of the entity associated to this actuator.

Implemented in argos::CPrototypeJointsDefaultActuator, argos::CMiniQuadrotorRotorDefaultActuator, argos::CTagsDefaultActuator, argos::CRangeAndBearingDefaultActuator, argos::CRadiosDefaultActuator, argos::CQuadRotorSpeedDefaultActuator, argos::CQuadRotorPositionDefaultActuator, argos::CMagnetsDefaultActuator, argos::CLEDsDefaultActuator, argos::CGripperDefaultActuator, argos::CDirectionalLEDsDefaultActuator, argos::CDifferentialSteeringDefaultActuator, argos::CFootBotTurretDefaultActuator, argos::CFootBotGripperDefaultActuator, and argos::CFootBotDistanceScannerDefaultActuator.
