argos::CAbstractSpaceHash< ENTITY > Class Template Referenceabstract

The abstract definition of a space hash. More...

#include <space_hash.h>

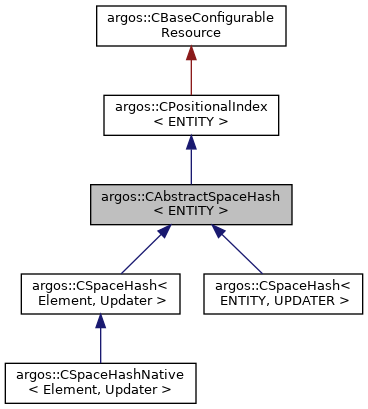

Inheritance diagram for argos::CAbstractSpaceHash< ENTITY >:
Collaboration diagram for argos::CAbstractSpaceHash< ENTITY >:

Public Types

typedef CSet< ENTITY * > TEntityList
 Type definition for the list of entities held by the space hash. More...


Public Member Functions

 CAbstractSpaceHash ()
 Class constructor. More...

virtual ~CAbstractSpaceHash ()
 Class destructor. More...

virtual void AddEntity (ENTITY &c_entity)
 Adds an entity to the space hash. More...

TEntityListGetEntities ()
 Returns the list of entities held by this space hash. More...

virtual void RemoveEntity (ENTITY &c_entity)
 Remove an entity from the space hash. More...

size_t GetSize ()
 Returns the size of the space hash. More...

virtual void SetSize (size_t un_size)
 Sets the size of the space hash. More...

CVector3GetCellSize ()
 Returns the size of the cells of the space hash. More...

CVector3GetInvCellSize ()
 Returns the inverse size of the cells of the space hash. More...

virtual void SetCellSize (const CVector3 &c_cell_size)
 Sets the size of the cells of the space hash. More...

virtual void Update ()=0
 Updates the entire space hash. More...

virtual void UpdateCell (SInt32 n_x, SInt32 n_y, SInt32 n_z, ENTITY &c_entity)=0
 Adds an entity to a cell of the space hash. More...

virtual SInt32 SpaceToHashTable (Real f_coord, UInt32 un_axis)
 Converts a single space coordinate into a space hash cell coordinate. More...

virtual Real HashTableToSpace (SInt32 n_coord, UInt32 un_axis)
 Converts a single space hash cell coordinate into a space coordinate. More...

virtual void SpaceToHashTable (SInt32 &n_i, SInt32 &n_j, SInt32 &n_k, const CVector3 &c_pos)
 Converts a space position into a space hash cell The values are written into n_i, n_j, and n_k. More...

virtual bool CheckCell (SInt32 n_i, SInt32 n_j, SInt32 n_k, TEntityList &t_entities)=0
 Looks for entities to process in a cell. More...

virtual void Dump (CARGoSLog &c_os)=0

- Public Member Functions inherited from argos::CPositionalIndex< ENTITY >
 CPositionalIndex ()

virtual ~CPositionalIndex ()

virtual void Init (TConfigurationNode &t_tree)=0
 Initializes the resource. More...

virtual void Reset ()=0
 Resets the resource. More...

virtual void Destroy ()=0
 Undoes whatever was done by Init(). More...

virtual void GetEntitiesAt (CSet< ENTITY *, SEntityComparator > &c_entities, const CVector3 &c_position) const =0
 Puts the entities located at the given point in the passed buffer. More...

virtual void ForAllEntities (COperation &c_operation)=0
 Executes an operation on all the indexed entities. More...

virtual void ForEntitiesInSphereRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0
 Executes an operation on all entities within the specified sphere range. More...

virtual void ForEntitiesInBoxRange (const CVector3 &c_center, const CVector3 &c_half_size, COperation &c_operation)=0
 Executes an operation on all entities within the specified box range. More...

virtual void ForEntitiesInCircleRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0
 Executes an operation on all entities within the specified circle range. More...

virtual void ForEntitiesInRectangleRange (const CVector3 &c_center, const CVector2 &c_half_size, COperation &c_operation)=0
 Executes an operation on all entities within the specified rectangle range. More...

virtual void ForEntitiesAlongRay (const CRay3 &c_ray, COperation &c_operation, bool b_stop_at_closest_match=false)=0
 Executes an operation on all entities that intersect the given ray. More...


Protected Member Functions

UInt32 CoordinateHash (SInt32 n_i, SInt32 n_j, SInt32 n_k)
 Calculates the hash of a space hash coordinate. More...


Detailed Description

template<class ENTITY>
class argos::CAbstractSpaceHash< ENTITY >

The abstract definition of a space hash.

This template class defines all the basic functionality of a space hash. This class is used only internally. To define your own space hash, you have to subclass CSpaceHash.

Parameters
ENTITYThe type of the entity held by the space hash
See also
CSpaceHash

Definition at line 34 of file space_hash.h.

Member Typedef Documentation

◆ TEntityList

template<class ENTITY >
typedef CSet<ENTITY*> argos::CAbstractSpaceHash< ENTITY >::TEntityList

Type definition for the list of entities held by the space hash.

Definition at line 41 of file space_hash.h.

Constructor & Destructor Documentation

◆ CAbstractSpaceHash()

template<class ENTITY >
argos::CAbstractSpaceHash< ENTITY >::CAbstractSpaceHash ( )
inline

Class constructor.

The size of the space hash (the number of buckets) is set to zero. To be able to use the space hash, you first must set the size to an appropriate value.

See also
SetSize()

Definition at line 52 of file space_hash.h.

◆ ~CAbstractSpaceHash()

template<class ENTITY >
virtual argos::CAbstractSpaceHash< ENTITY >::~CAbstractSpaceHash ( )
inlinevirtual

Class destructor.

Definition at line 57 of file space_hash.h.

Member Function Documentation

◆ AddEntity()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::AddEntity ( ENTITY &  c_entity)
inlinevirtual

Adds an entity to the space hash.

Parameters
c_entityThe entity to add.

Implements argos::CPositionalIndex< ENTITY >.

Definition at line 63 of file space_hash.h.

◆ CheckCell()

template<class ENTITY >
virtual bool argos::CAbstractSpaceHash< ENTITY >::CheckCell ( SInt32  n_i,
SInt32  n_j,
SInt32  n_k,
TEntityList t_entities
)
pure virtual

Looks for entities to process in a cell.

Parameters
n_iThe X coordinate of the space hash cell.
n_jThe Y coordinate of the space hash cell.
n_kThe Z coordinate of the space hash cell.
t_entitiesThe resulting list of entities to process.
Returns
true if new entities were added to t_entities.

◆ CoordinateHash()

template<class ENTITY >
UInt32 argos::CAbstractSpaceHash< ENTITY >::CoordinateHash ( SInt32  n_i,
SInt32  n_j,
SInt32  n_k
)
inlineprotected

Calculates the hash of a space hash coordinate.

Parameters
n_iThe X coordinate of the space hash cell.
n_jThe Y coordinate of the space hash cell.
n_kThe Z coordinate of the space hash cell.
Returns
The hash of a space hash coordinate.

Definition at line 220 of file space_hash.h.

◆ Dump()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::Dump ( CARGoSLog c_os)
pure virtual

◆ GetCellSize()

template<class ENTITY >
CVector3& argos::CAbstractSpaceHash< ENTITY >::GetCellSize ( )
inline

Returns the size of the cells of the space hash.

The size is returned in meters.

Returns
The size of the cells of the space hash.

Definition at line 112 of file space_hash.h.

◆ GetEntities()

template<class ENTITY >
TEntityList& argos::CAbstractSpaceHash< ENTITY >::GetEntities ( )
inline

Returns the list of entities held by this space hash.

Returns
The list of entities held by this space hash.

Definition at line 71 of file space_hash.h.

◆ GetInvCellSize()

template<class ENTITY >
CVector3& argos::CAbstractSpaceHash< ENTITY >::GetInvCellSize ( )
inline

Returns the inverse size of the cells of the space hash.

It is used to convert measures of the space into cells of the space hash.

Returns
The size of the cells of the space hash.
See also
SpaceToHashTable

Definition at line 122 of file space_hash.h.

◆ GetSize()

template<class ENTITY >
size_t argos::CAbstractSpaceHash< ENTITY >::GetSize ( )
inline

Returns the size of the space hash.

The size corresponds to the number of buckets.

Returns
The size of the space hash.

Definition at line 94 of file space_hash.h.

◆ HashTableToSpace()

template<class ENTITY >
virtual Real argos::CAbstractSpaceHash< ENTITY >::HashTableToSpace ( SInt32  n_coord,
UInt32  un_axis
)
inlinevirtual

Converts a single space hash cell coordinate into a space coordinate.

Parameters
n_coordThe value of the X/Y/Z space hash coordinate.
un_axisthe axis: 0 -> X, 1 -> Y, 2 -> Z.
Returns
The X/Y/Z coordinate in the space.

Definition at line 174 of file space_hash.h.

◆ RemoveEntity()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::RemoveEntity ( ENTITY &  c_entity)
inlinevirtual

Remove an entity from the space hash.

Parameters
c_entityThe entity to remove.

Implements argos::CPositionalIndex< ENTITY >.

Definition at line 79 of file space_hash.h.

◆ SetCellSize()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::SetCellSize ( const CVector3 c_cell_size)
inlinevirtual

Sets the size of the cells of the space hash.

The size is measured in meters.

Parameters
c_cell_sizeThe new size for the cells of the space hash.

Definition at line 131 of file space_hash.h.

◆ SetSize()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::SetSize ( size_t  un_size)
inlinevirtual

Sets the size of the space hash.

The size corresponds to the number of buckets.

Parameters
un_sizeThe size of the space hash.

Reimplemented in argos::CSpaceHashNative< Element, Updater >.

Definition at line 103 of file space_hash.h.

◆ SpaceToHashTable() [1/2]

template<class ENTITY >
virtual SInt32 argos::CAbstractSpaceHash< ENTITY >::SpaceToHashTable ( Real  f_coord,
UInt32  un_axis
)
inlinevirtual

Converts a single space coordinate into a space hash cell coordinate.

Parameters
f_coordThe value of the X/Y/Z coordinate in meters.
un_axisthe axis: 0 -> X, 1 -> Y, 2 -> Z.
Returns
The X/Y/Z coordinate of the corresponding space hash cell.

Definition at line 163 of file space_hash.h.

◆ SpaceToHashTable() [2/2]

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::SpaceToHashTable ( SInt32 n_i,
SInt32 n_j,
SInt32 n_k,
const CVector3 c_pos
)
inlinevirtual

Converts a space position into a space hash cell The values are written into n_i, n_j, and n_k.

Parameters
n_iThe X coordinate of the space hash cell.
n_jThe Y coordinate of the space hash cell.
n_kThe Z coordinate of the space hash cell.
c_posThe value position in meters.

Definition at line 187 of file space_hash.h.

◆ Update()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::Update ( )
pure virtual

◆ UpdateCell()

template<class ENTITY >
virtual void argos::CAbstractSpaceHash< ENTITY >::UpdateCell ( SInt32  n_x,
SInt32  n_y,
SInt32  n_z,
ENTITY &  c_entity
)
pure virtual

Adds an entity to a cell of the space hash.

Parameters
n_xThe x coordinate of the cell.
n_yThe y coordinate of the cell.
n_zThe z coordinate of the cell.
c_entityThe entity to add.
