The ARGoS Website

A container of CRadioEntity. More...

#include <radio_equipped_entity.h>

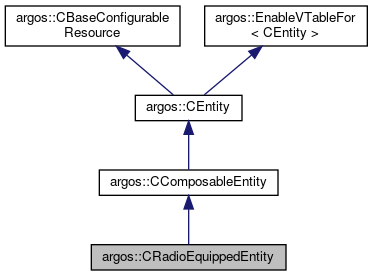

Inheritance diagram for argos::CRadioEquippedEntity:

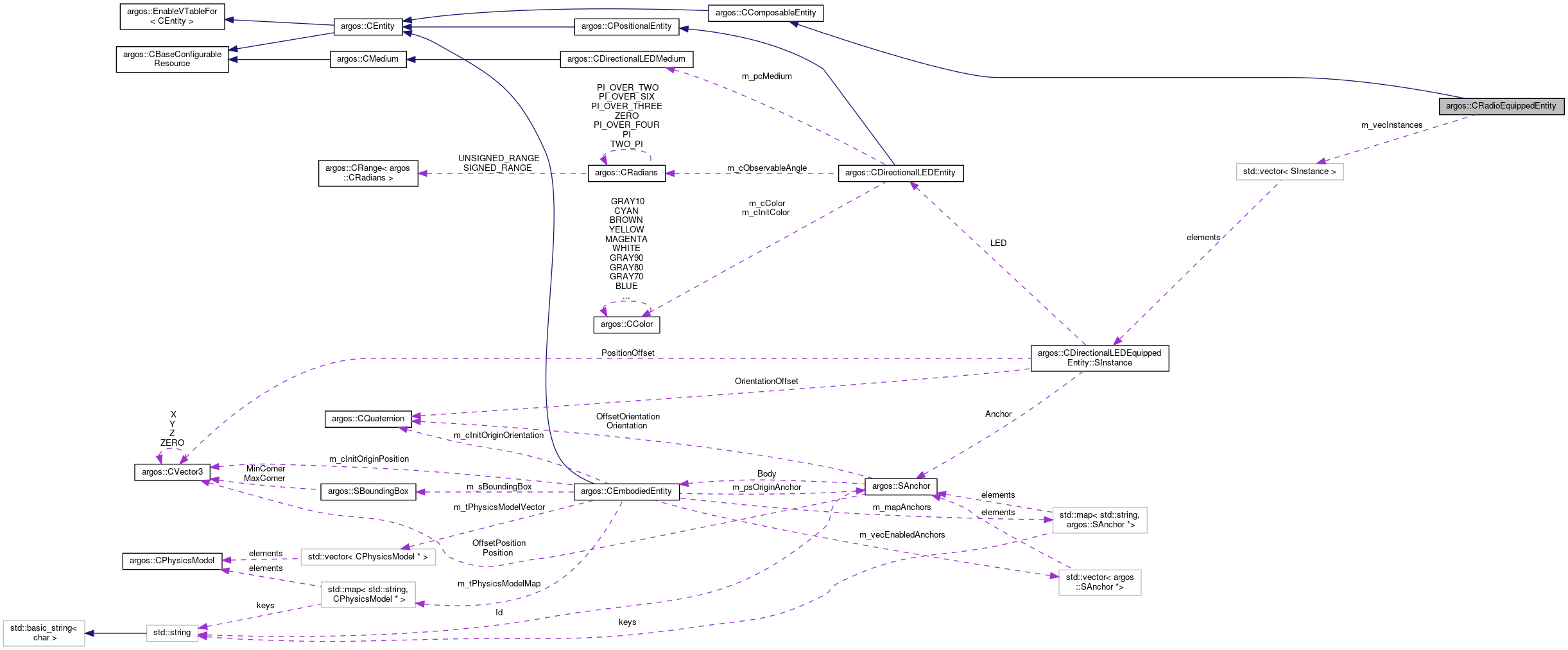

Collaboration diagram for argos::CRadioEquippedEntity:

Classes

struct  SInstance


Public Member Functions

 ENABLE_VTABLE ()

 CRadioEquippedEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CRadioEquippedEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CRadioEquippedEntity ()

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual void Enable ()

virtual void Disable ()

void AddRadio (const CVector3 &c_offset, SAnchor &s_anchor, Real f_transmit_range)
 Programmatically creates a new radio. More...

CRadioEntityGetRadio (UInt32 un_index)
 Returns a radio by numeric index. More...

SInstance::TVectorGetInstances ()
 Returns the radios. More...

const SInstance::TVectorGetInstances () const
 Returns the radios as a const reference. More...

void SetMedium (CRadioMedium &c_medium)
 Sets the medium associated to this entity. More...

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

- Public Member Functions inherited from argos::CComposableEntity
 ENABLE_VTABLE ()

 CComposableEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CComposableEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CComposableEntity ()
 Class destructor. More...

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

virtual void Update ()
 Updates the status of this entity. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

void AddComponent (CEntity &c_component)
 Adds a component to this composable entity. More...

CEntityRemoveComponent (const std::string &str_component)
 Removes a component from this composable entity. More...

CEntityGetComponent (const std::string &str_component)
 Returns the component with the passed string label. More...

template<class E >
E & GetComponent (const std::string &str_component)
 Returns the component with the passed string label. More...

bool HasComponent (const std::string &str_component)
 Returns true if this composable entity has a component with the given string label. More...

CEntity::TMultiMap::iterator FindComponent (const std::string &str_component)
 Searches for a component with the given string label. More...

CEntity::TMultiMapGetComponentMap ()
 Returns the map of all the components. More...

CEntity::TVectorGetComponentVector ()
 Returns the vector of all the components. More...

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Protected Member Functions

virtual void UpdateComponents ()
 Calls the Update() method on all the components. More...


Protected Attributes

SInstance::TVector m_vecInstances
 List of the radios managed by this entity. More...


Additional Inherited Members

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Detailed Description

A container of CRadioEntity.

This is a convenience class that acts a container of CRadioEntity objects. It is mostly useful when a robot is equipped with a number of radios, and you want to manage them comfortably.

See also
CRadioEntity

Definition at line 30 of file radio_equipped_entity.h.

Constructor & Destructor Documentation

◆ CRadioEquippedEntity() [1/2]

argos::CRadioEquippedEntity::CRadioEquippedEntity ( CComposableEntity pc_parent)

Class constructor.

Parameters
pc_parentThe parent entity.

Definition at line 27 of file radio_equipped_entity.cpp.

◆ CRadioEquippedEntity() [2/2]

argos::CRadioEquippedEntity::CRadioEquippedEntity ( CComposableEntity pc_parent,
const std::string &  str_id
)

Class constructor.

Parameters
pc_parentThe parent entity.
str_idThe id of this entity.

Definition at line 35 of file radio_equipped_entity.cpp.

◆ ~CRadioEquippedEntity()

virtual argos::CRadioEquippedEntity::~CRadioEquippedEntity ( )
inlinevirtual

Definition at line 64 of file radio_equipped_entity.h.

Member Function Documentation

◆ AddRadio()

void argos::CRadioEquippedEntity::AddRadio ( const CVector3 c_offset,
SAnchor s_anchor,
Real  f_transmit_range
)

Programmatically creates a new radio.

Parameters
c_offsetThe position of the radio.
s_anchorThe anchor of the radio.
f_transmit_rangeThe transmit range of the radio.
See also
GetInstances()
GetRadio()

Definition at line 109 of file radio_equipped_entity.cpp.

◆ Disable()

void argos::CRadioEquippedEntity::Disable ( )
virtual

Definition at line 97 of file radio_equipped_entity.cpp.

◆ Enable()

void argos::CRadioEquippedEntity::Enable ( )
virtual

Definition at line 85 of file radio_equipped_entity.cpp.

◆ ENABLE_VTABLE()

argos::CRadioEquippedEntity::ENABLE_VTABLE ( )

◆ GetInstances() [1/2]

SInstance::TVector& argos::CRadioEquippedEntity::GetInstances ( )
inline

Returns the radios.

Returns
The radios.
See also
GetInstances()
GetRadio()

Definition at line 98 of file radio_equipped_entity.h.

◆ GetInstances() [2/2]

const SInstance::TVector& argos::CRadioEquippedEntity::GetInstances ( ) const
inline

Returns the radios as a const reference.

Returns
The radios as a const reference.
See also
GetInstances()
GetRadio()

Definition at line 108 of file radio_equipped_entity.h.

◆ GetRadio()

CRadioEntity & argos::CRadioEquippedEntity::GetRadio ( UInt32  un_index)

Returns a radio by numeric index.

Parameters
un_indexThe index of the specified radio.
Returns
A radio by numeric index.
See also
GetInstances()

Definition at line 130 of file radio_equipped_entity.cpp.

◆ GetTypeDescription()

virtual std::string argos::CRadioEquippedEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CComposableEntity.

Definition at line 119 of file radio_equipped_entity.h.

◆ Init()

void argos::CRadioEquippedEntity::Init ( TConfigurationNode t_tree)
virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions
CARGoSExceptionif a parse error occurred

Reimplemented from argos::CEntity.

Definition at line 44 of file radio_equipped_entity.cpp.

◆ SetMedium()

void argos::CRadioEquippedEntity::SetMedium ( CRadioMedium c_medium)

Sets the medium associated to this entity.

Parameters
c_mediumThe medium to associate to this entity.
See also
CRadioMedium

Definition at line 159 of file radio_equipped_entity.cpp.

◆ UpdateComponents()

void argos::CRadioEquippedEntity::UpdateComponents ( )
protectedvirtual

Calls the Update() method on all the components.

See also
Update()

Reimplemented from argos::CComposableEntity.

Definition at line 144 of file radio_equipped_entity.cpp.

Member Data Documentation

◆ m_vecInstances

SInstance::TVector argos::CRadioEquippedEntity::m_vecInstances
protected

List of the radios managed by this entity.

Definition at line 130 of file radio_equipped_entity.h.
