argos::CWheeledEntity Class Reference

#include <wheeled_entity.h>

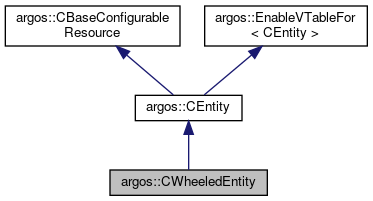

Inheritance diagram for argos::CWheeledEntity:
Collaboration diagram for argos::CWheeledEntity:

Public Member Functions

 ENABLE_VTABLE ()

 CWheeledEntity (CComposableEntity *pc_parent, size_t un_num_wheels)

 CWheeledEntity (CComposableEntity *pc_parent, const std::string &str_id, size_t un_num_wheels)

virtual ~CWheeledEntity ()

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

size_t GetNumWheels () const

void SetWheel (UInt32 un_index, const CVector3 &c_position, Real f_radius)

const CVector3GetWheelPosition (size_t un_index) const

const CVector3GetWheelPositions () const

Real GetWheelRadius (size_t un_index) const

const RealGetWheelRadia () const

Real GetWheelVelocity (size_t un_index) const

const RealGetWheelVelocities () const

void SetVelocities (Real *pf_velocities)

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

virtual void Update ()
 Updates the state of this entity. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Additional Inherited Members

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Detailed Description

Definition at line 15 of file wheeled_entity.h.

Constructor & Destructor Documentation

◆ CWheeledEntity() [1/2]

argos::CWheeledEntity::CWheeledEntity ( CComposableEntity pc_parent,
size_t  un_num_wheels
)

Definition at line 15 of file wheeled_entity.cpp.

◆ CWheeledEntity() [2/2]

argos::CWheeledEntity::CWheeledEntity ( CComposableEntity pc_parent,
const std::string &  str_id,
size_t  un_num_wheels
)

Definition at line 30 of file wheeled_entity.cpp.

◆ ~CWheeledEntity()

argos::CWheeledEntity::~CWheeledEntity ( )
virtual

Definition at line 46 of file wheeled_entity.cpp.

Member Function Documentation

◆ ENABLE_VTABLE()

argos::CWheeledEntity::ENABLE_VTABLE ( )

◆ GetNumWheels()

size_t argos::CWheeledEntity::GetNumWheels ( ) const
inline

Definition at line 34 of file wheeled_entity.h.

◆ GetTypeDescription()

virtual std::string argos::CWheeledEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CEntity.

Definition at line 62 of file wheeled_entity.h.

◆ GetWheelPosition()

const CVector3 & argos::CWheeledEntity::GetWheelPosition ( size_t  un_index) const

Definition at line 77 of file wheeled_entity.cpp.

◆ GetWheelPositions()

const CVector3* argos::CWheeledEntity::GetWheelPositions ( ) const
inline

Definition at line 44 of file wheeled_entity.h.

◆ GetWheelRadia()

const Real* argos::CWheeledEntity::GetWheelRadia ( ) const
inline

Definition at line 50 of file wheeled_entity.h.

◆ GetWheelRadius()

Real argos::CWheeledEntity::GetWheelRadius ( size_t  un_index) const

Definition at line 89 of file wheeled_entity.cpp.

◆ GetWheelVelocities()

const Real* argos::CWheeledEntity::GetWheelVelocities ( ) const
inline

Definition at line 56 of file wheeled_entity.h.

◆ GetWheelVelocity()

Real argos::CWheeledEntity::GetWheelVelocity ( size_t  un_index) const

Definition at line 101 of file wheeled_entity.cpp.

◆ Reset()

void argos::CWheeledEntity::Reset ( )
virtual

Resets the state of the entity to whatever it was after Init() or the standalone constructor was called.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 55 of file wheeled_entity.cpp.

◆ SetVelocities()

void argos::CWheeledEntity::SetVelocities ( Real pf_velocities)

Definition at line 113 of file wheeled_entity.cpp.

◆ SetWheel()

void argos::CWheeledEntity::SetWheel ( UInt32  un_index,
const CVector3 c_position,
Real  f_radius
)

Definition at line 62 of file wheeled_entity.cpp.
