#include <ground_sensor_equipped_entity.h>

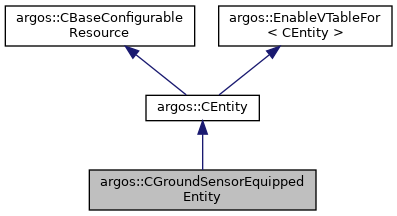

Inheritance diagram for argos::CGroundSensorEquippedEntity:

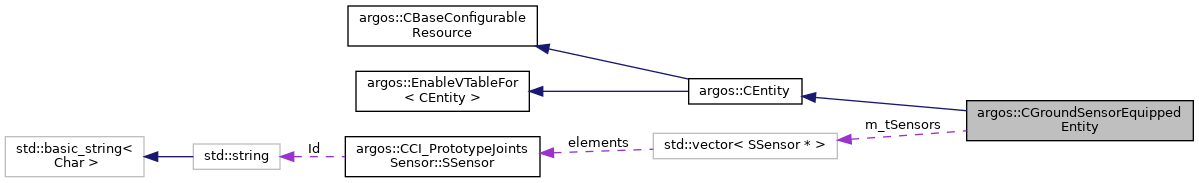

Collaboration diagram for argos::CGroundSensorEquippedEntity:

Classes

struct  SSensor


Public Types

enum  ESensorType { TYPE_BLACK_WHITE = 0 , TYPE_GRAYSCALE }

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Public Member Functions

 ENABLE_VTABLE ()

 CGroundSensorEquippedEntity (CComposableEntity *pc_parent)

 CGroundSensorEquippedEntity (CComposableEntity *pc_parent, const std::string &str_id)

virtual ~CGroundSensorEquippedEntity ()

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

virtual void Enable ()

virtual void Disable ()

size_t GetNumSensors () const

SSensorGetSensor (size_t un_idx)

SSensor::TListGetSensors ()

void AddSensor (const CVector2 &c_offset, ESensorType e_type, SAnchor &s_anchor)

void AddSensorRing (const CVector2 &c_center, Real f_radius, const CRadians &c_start_angle, ESensorType e_type, UInt32 un_num_sensors, SAnchor &s_anchor)

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

virtual void Update ()
 Updates the state of this entity. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Protected Member Functions

ESensorType ParseType (const std::string &str_type) const


Protected Attributes

SSensor::TList m_tSensors
 The list of sensors. More...


Detailed Description

Definition at line 21 of file ground_sensor_equipped_entity.h.

Member Enumeration Documentation

◆ ESensorType

Enumerator
TYPE_BLACK_WHITE
TYPE_GRAYSCALE

Definition at line 27 of file ground_sensor_equipped_entity.h.

Constructor & Destructor Documentation

◆ CGroundSensorEquippedEntity() [1/2]

argos::CGroundSensorEquippedEntity::CGroundSensorEquippedEntity ( CComposableEntity pc_parent)

Definition at line 16 of file ground_sensor_equipped_entity.cpp.

◆ CGroundSensorEquippedEntity() [2/2]

argos::CGroundSensorEquippedEntity::CGroundSensorEquippedEntity ( CComposableEntity pc_parent,
const std::string &  str_id
)

Definition at line 24 of file ground_sensor_equipped_entity.cpp.

◆ ~CGroundSensorEquippedEntity()

argos::CGroundSensorEquippedEntity::~CGroundSensorEquippedEntity ( )
virtual

Definition at line 33 of file ground_sensor_equipped_entity.cpp.

Member Function Documentation

◆ AddSensor()

void argos::CGroundSensorEquippedEntity::AddSensor ( const CVector2 c_offset,
ESensorType  e_type,
SAnchor s_anchor
)

Definition at line 130 of file ground_sensor_equipped_entity.cpp.

◆ AddSensorRing()

void argos::CGroundSensorEquippedEntity::AddSensorRing ( const CVector2 c_center,
Real  f_radius,
const CRadians c_start_angle,
ESensorType  e_type,
UInt32  un_num_sensors,
SAnchor s_anchor
)

Definition at line 139 of file ground_sensor_equipped_entity.cpp.

◆ Disable()

void argos::CGroundSensorEquippedEntity::Disable ( )
virtual

Definition at line 120 of file ground_sensor_equipped_entity.cpp.

◆ Enable()

void argos::CGroundSensorEquippedEntity::Enable ( )
virtual

Definition at line 110 of file ground_sensor_equipped_entity.cpp.

◆ ENABLE_VTABLE()

argos::CGroundSensorEquippedEntity::ENABLE_VTABLE ( )

◆ GetNumSensors()

size_t argos::CGroundSensorEquippedEntity::GetNumSensors ( ) const
inline

Definition at line 66 of file ground_sensor_equipped_entity.h.

◆ GetSensor()

SSensor& argos::CGroundSensorEquippedEntity::GetSensor ( size_t  un_idx)
inline

Definition at line 70 of file ground_sensor_equipped_entity.h.

◆ GetSensors()

SSensor::TList& argos::CGroundSensorEquippedEntity::GetSensors ( )
inline

Definition at line 74 of file ground_sensor_equipped_entity.h.

◆ GetTypeDescription()

virtual std::string argos::CGroundSensorEquippedEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CEntity.

Definition at line 58 of file ground_sensor_equipped_entity.h.

◆ Init()

void argos::CGroundSensorEquippedEntity::Init ( TConfigurationNode t_tree)
virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions
CARGoSExceptionif a parse error occurred

Reimplemented from argos::CEntity.

Definition at line 43 of file ground_sensor_equipped_entity.cpp.

◆ ParseType()

CGroundSensorEquippedEntity::ESensorType argos::CGroundSensorEquippedEntity::ParseType ( const std::string &  str_type) const
protected

Definition at line 161 of file ground_sensor_equipped_entity.cpp.

Member Data Documentation

◆ m_tSensors

SSensor::TList argos::CGroundSensorEquippedEntity::m_tSensors
protected

The list of sensors.

Definition at line 96 of file ground_sensor_equipped_entity.h.
