#include <magnet_entity.h>

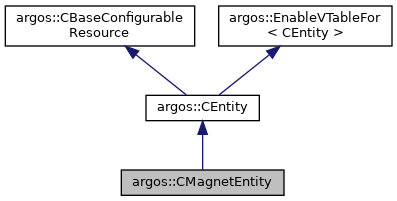

Inheritance diagram for argos::CMagnetEntity:

[legend]

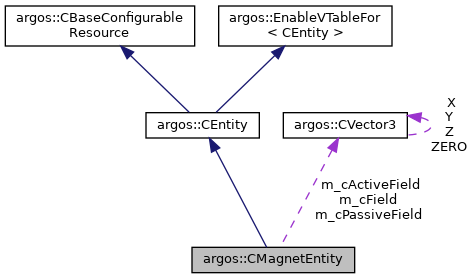

Collaboration diagram for argos::CMagnetEntity:

[legend]

Public Member Functions
	ENABLE_VTABLE ()

	CMagnetEntity (CComposableEntity *pc_parent)

	CMagnetEntity (CComposableEntity *pc_parent, const std::string &str_id, const CVector3 &c_passive_field, const CVector3 &c_active_field)

virtual	~CMagnetEntity ()

virtual void	Init (TConfigurationNode &t_tree)
	Initializes the state of the entity from the XML configuration tree. More...

virtual void	Reset ()
	Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

const CVector3 &	GetField () const
	Returns the field of the magnet. More...

const CVector3 &	GetPassiveField () const
	Returns the passive field with which the magnet was initialized. More...

const CVector3 &	GetActiveField () const
	Returns the active field with which the magnet was initialized. More...

void	SetCurrent (Real f_current)
	Sets the current field of the magnet. More...

virtual std::string	GetTypeDescription () const
	Returns a string label for this class. More...

Public Member Functions inherited from argos::CEntity
	ENABLE_VTABLE ()

	CEntity (CComposableEntity *pc_parent)
	Class constructor. More...

	CEntity (CComposableEntity *pc_parent, const std::string &str_id)
	Class constructor. More...

virtual	~CEntity ()
	Class destructor. More...

virtual void	Destroy ()
	Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string &	GetId () const
	Returns the id of this entity. More...

std::string	GetContext () const
	Returns the context of this entity. More...

bool	HasParent () const
	Returns `true` if this entity has a parent. More...

CEntity &	GetRootEntity ()
	Returns the root entity containing this entity. More...

const CEntity &	GetRootEntity () const
	Returns the root entity containing this entity. More...

CComposableEntity &	GetParent ()
	Returns this entity's parent. More...

const CComposableEntity &	GetParent () const
	Returns this entity's parent. More...

void	SetParent (CComposableEntity &c_parent)
	Sets this entity's parent. More...

virtual void	Update ()
	Updates the state of this entity. More...

ssize_t	GetIndex () const
	Returns the entity index. More...

void	SetIndex (ssize_t n_idx)
	Sets the entity index. More...

bool	IsEnabled () const
	Returns `true` if the entity is enabled. More...

void	Enable ()
	Enables the entity. More...

void	Disable ()
	Disables the entity. More...

virtual void	SetEnabled (bool b_enabled)
	Enables or disables an entity. More...

TConfigurationNode *	GetConfigurationNode ()
	Returns a pointer to the configuration node that was used to create this entity. More...

Public Member Functions inherited from argos::CBaseConfigurableResource
virtual	~CBaseConfigurableResource ()
	Class destructor. More...

Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t	GetTagHelper (const DERIVED *) const

Protected Attributes
CVector3	m_cField

CVector3	m_cPassiveField

CVector3	m_cActiveField

Additional Inherited Members
Public Types inherited from argos::CEntity
typedef std::vector< CEntity * >	TVector
	A vector of entities. More...

typedef unordered_map< std::string, CEntity * >	TMap
	A map of entities. More...

typedef std::multimap< std::string, CEntity * >	TMultiMap
	A multi-map of entities. More...

Detailed Description

Definition at line 19 of file magnet_entity.h.

Constructor & Destructor Documentation

◆ CMagnetEntity() [1/2]

argos::CMagnetEntity::CMagnetEntity ( CComposableEntity * pc_parent )

Definition at line 15 of file magnet_entity.cpp.

◆ CMagnetEntity() [2/2]

argos::CMagnetEntity::CMagnetEntity	(	CComposableEntity *	pc_parent,
		const std::string &	str_id,
		const CVector3 &	c_passive_field,
		const CVector3 &	c_active_field
	)

Definition at line 24 of file magnet_entity.cpp.

◆ ~CMagnetEntity()

virtual argos::CMagnetEntity::~CMagnetEntity ( )

inlinevirtual

Definition at line 34 of file magnet_entity.h.

Member Function Documentation

◆ ENABLE_VTABLE()

argos::CMagnetEntity::ENABLE_VTABLE ( )

◆ GetActiveField()

const CVector3& argos::CMagnetEntity::GetActiveField ( ) const

inline

Returns the active field with which the magnet was initialized.

This value is used by an actuator, that will update the field using the expression: field = passive_field + active_field * current

Returns: the active field with which the magnet was initialized.

See also: GetField()

Definition at line 66 of file magnet_entity.h.

◆ GetField()

const CVector3& argos::CMagnetEntity::GetField ( ) const

inline

Returns the field of the magnet.

Returns: the field of the magnet.

See also: SetField()

Definition at line 45 of file magnet_entity.h.

◆ GetPassiveField()

const CVector3& argos::CMagnetEntity::GetPassiveField ( ) const

inline

Returns the passive field with which the magnet was initialized.

When the simulation is reset, the magnet field is set to this value.

Returns: the field with which the magnet was initialized.

See also: GetField()

Definition at line 55 of file magnet_entity.h.

◆ GetTypeDescription()

virtual std::string argos::CMagnetEntity::GetTypeDescription ( ) const

inlinevirtual

Returns a string label for this class.

Returns: A string label for this class.

Reimplemented from argos::CEntity.

Definition at line 79 of file magnet_entity.h.

◆ Init()

void argos::CMagnetEntity::Init ( TConfigurationNode & t_tree )

virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions

CARGoSException if a parse error occurred

Reimplemented from argos::CEntity.

Definition at line 36 of file magnet_entity.cpp.

◆ Reset()

void argos::CMagnetEntity::Reset ( )

virtual

Resets the state of the entity to whatever it was after Init() or the standalone constructor was called.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 54 of file magnet_entity.cpp.

◆ SetCurrent()

void argos::CMagnetEntity::SetCurrent ( Real f_current )

inline

Sets the current field of the magnet.

Parameters

c_field the wanted field.

See also: GetField()

Definition at line 75 of file magnet_entity.h.

Member Data Documentation

◆ m_cActiveField

CVector3 argos::CMagnetEntity::m_cActiveField

protected

Definition at line 87 of file magnet_entity.h.

◆ m_cField

CVector3 argos::CMagnetEntity::m_cField

protected

Definition at line 85 of file magnet_entity.h.

◆ m_cPassiveField

CVector3 argos::CMagnetEntity::m_cPassiveField

protected

Definition at line 86 of file magnet_entity.h.
