#include <radio_entity.h>

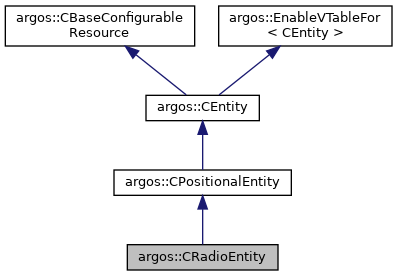

Inheritance diagram for argos::CRadioEntity:

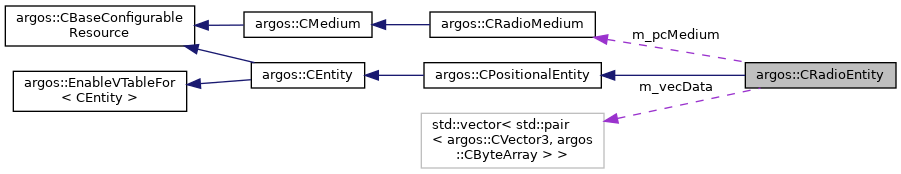

Collaboration diagram for argos::CRadioEntity:

Public Types

typedef std::vector< CRadioEntity * > TList

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Public Member Functions

 ENABLE_VTABLE ()

 CRadioEntity (CComposableEntity *pc_parent)

 CRadioEntity (CComposableEntity *pc_parent, const std::string &str_id, Real f_transmit_range)

virtual ~CRadioEntity ()

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

const std::vector< std::pair< CVector3, CByteArray > > & GetData () const
 Returns a constant reference to the received data. More...

std::vector< std::pair< CVector3, CByteArray > > & GetData ()
 Returns a reference to the received data. More...

void ReceiveData (const CVector3 &c_tx_location, const CByteArray &c_tx_data)
 Adds data received by the radio. More...

bool HasData () const
 Checks if there has been data received by the radio. More...

Real GetRange () const
 Returns the transmission range of the radio. More...

void SetRange (Real f_range)
 Sets the tranmission range of the radio. More...

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

bool HasMedium () const
 Returns true if this radio is associated to a medium. More...

CRadioMediumGetMedium () const
 Returns the medium associated to this radio. More...

void SetMedium (CRadioMedium &c_medium)
 Sets the medium associated to this entity. More...

- Public Member Functions inherited from argos::CPositionalEntity
 ENABLE_VTABLE ()

 CPositionalEntity (CComposableEntity *pc_parent)

 CPositionalEntity (CComposableEntity *pc_parent, const std::string &str_id, const CVector3 &c_position=CVector3(), const CQuaternion &c_orientation=CQuaternion())

const CVector3GetPosition () const

const CVector3GetInitPosition () const

void SetPosition (const CVector3 &c_position)

void SetInitPosition (const CVector3 &c_position)

const CQuaternionGetOrientation () const

const CQuaternionGetInitOrientation () const

void SetOrientation (const CQuaternion c_orientation)

void SetInitOrientation (const CQuaternion c_orientation)

virtual void MoveTo (const CVector3 &c_position, const CQuaternion &c_orientation)

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

virtual void Update ()
 Updates the state of this entity. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Protected Attributes

Real m_fRange

std::vector< std::pair< CVector3, CByteArray > > m_vecData

CRadioMediumm_pcMedium


Detailed Description

Definition at line 24 of file radio_entity.h.

Member Typedef Documentation

◆ TList

Definition at line 32 of file radio_entity.h.

Constructor & Destructor Documentation

◆ CRadioEntity() [1/2]

argos::CRadioEntity::CRadioEntity ( CComposableEntity pc_parent)

Definition at line 17 of file radio_entity.cpp.

◆ CRadioEntity() [2/2]

argos::CRadioEntity::CRadioEntity ( CComposableEntity pc_parent,
const std::string &  str_id,
Real  f_transmit_range
)

Definition at line 25 of file radio_entity.cpp.

◆ ~CRadioEntity()

virtual argos::CRadioEntity::~CRadioEntity ( )
inlinevirtual

Definition at line 42 of file radio_entity.h.

Member Function Documentation

◆ Destroy()

void argos::CRadioEntity::Destroy ( )
virtual

Destroys the entity, undoing whatever was done by Init() or by the standalone constructor.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 57 of file radio_entity.cpp.

◆ ENABLE_VTABLE()

argos::CRadioEntity::ENABLE_VTABLE ( )

◆ GetData() [1/2]

std::vector<std::pair<CVector3, CByteArray> >& argos::CRadioEntity::GetData ( )
inline

Returns a reference to the received data.

Returns
A reference to the received data.
See also
ReceiveData()

Definition at line 66 of file radio_entity.h.

◆ GetData() [2/2]

const std::vector<std::pair<CVector3, CByteArray> >& argos::CRadioEntity::GetData ( ) const
inline

Returns a constant reference to the received data.

Returns
A constant reference to the received data.
See also
ReceiveData()

Definition at line 57 of file radio_entity.h.

◆ GetMedium()

CRadioMedium & argos::CRadioEntity::GetMedium ( ) const

Returns the medium associated to this radio.

Returns
The medium associated to this radio.
See also
CRadioMedium

Definition at line 82 of file radio_entity.cpp.

◆ GetRange()

Real argos::CRadioEntity::GetRange ( ) const
inline

Returns the transmission range of the radio.

Returns
the transmission range of the radio.
See also
SetRange()

Definition at line 94 of file radio_entity.h.

◆ GetTypeDescription()

virtual std::string argos::CRadioEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CPositionalEntity.

Definition at line 107 of file radio_entity.h.

◆ HasData()

bool argos::CRadioEntity::HasData ( ) const
inline

Checks if there has been data received by the radio.

Returns
A boolean value representing whether data has been received
See also
GetData()
ClearData()

Definition at line 85 of file radio_entity.h.

◆ HasMedium()

bool argos::CRadioEntity::HasMedium ( ) const
inline

Returns true if this radio is associated to a medium.

Returns
true if this radio is associated to a medium.
See also
CRadioMedium

Definition at line 116 of file radio_entity.h.

◆ Init()

void argos::CRadioEntity::Init ( TConfigurationNode t_tree)
virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions
CARGoSExceptionif a parse error occurred

Reimplemented from argos::CPositionalEntity.

Definition at line 35 of file radio_entity.cpp.

◆ ReceiveData()

void argos::CRadioEntity::ReceiveData ( const CVector3 c_tx_location,
const CByteArray c_tx_data
)
inline

Adds data received by the radio.

Parameters
c_dataa pair containing the data to be received and its origin.
See also
GetData()

Definition at line 75 of file radio_entity.h.

◆ Reset()

void argos::CRadioEntity::Reset ( )
virtual

Resets the state of the entity to whatever it was after Init() or the standalone constructor was called.

The default implementation of this method does nothing.

Reimplemented from argos::CPositionalEntity.

Definition at line 49 of file radio_entity.cpp.

◆ SetEnabled()

void argos::CRadioEntity::SetEnabled ( bool  b_enabled)
virtual

Enables or disables an entity.

Parameters
b_enabledtrue if the entity is enabled, false otherwise
See also
m_bEnabled
m_bCanBeEnabledIfDisabled

Reimplemented from argos::CEntity.

Definition at line 64 of file radio_entity.cpp.

◆ SetMedium()

void argos::CRadioEntity::SetMedium ( CRadioMedium c_medium)

Sets the medium associated to this entity.

Parameters
c_mediumThe medium to associate to this entity.
See also
CRadioMedium

Definition at line 93 of file radio_entity.cpp.

◆ SetRange()

void argos::CRadioEntity::SetRange ( Real  f_range)
inline

Sets the tranmission range of the radio.

Parameters
f_rangethe new transmission range of the radio in metres.
See also
GetRange()

Definition at line 103 of file radio_entity.h.

Member Data Documentation

◆ m_fRange

Real argos::CRadioEntity::m_fRange
protected

Definition at line 136 of file radio_entity.h.

◆ m_pcMedium

CRadioMedium* argos::CRadioEntity::m_pcMedium
protected

Definition at line 138 of file radio_entity.h.

◆ m_vecData

std::vector<std::pair<CVector3, CByteArray> > argos::CRadioEntity::m_vecData
protected

Definition at line 137 of file radio_entity.h.
