A data structure that contains positional entities. More...

#include <positional_index.h>

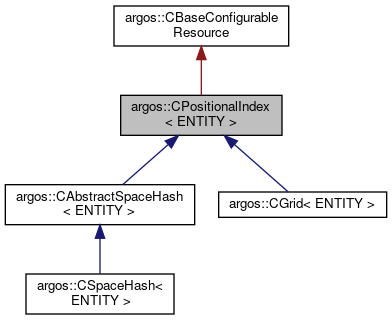

Inheritance diagram for argos::CPositionalIndex< ENTITY >:

[legend]

Collaboration diagram for argos::CPositionalIndex< ENTITY >:

Classes
class	COperation
	The operation to perform on each entity found in range. More...

Public Member Functions
	CPositionalIndex ()

virtual	~CPositionalIndex ()

virtual void	Init (TConfigurationNode &t_tree)=0
	Initializes the resource. More...

virtual void	Reset ()=0
	Resets the resource. More...

virtual void	Destroy ()=0
	Undoes whatever was done by Init(). More...

virtual void	AddEntity (ENTITY &c_entity)=0
	Adds an entity to this index. More...

virtual void	RemoveEntity (ENTITY &c_entity)=0
	Removes an entity from this index. More...

virtual void	Update ()=0
	Updates this positional index. More...

virtual void	GetEntitiesAt (CSet< ENTITY *, SEntityComparator > &c_entities, const CVector3 &c_position) const =0
	Puts the entities located at the given point in the passed buffer. More...

virtual void	ForAllEntities (COperation &c_operation)=0
	Executes an operation on all the indexed entities. More...

virtual void	ForEntitiesInSphereRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0
	Executes an operation on all entities within the specified sphere range. More...

virtual void	ForEntitiesInBoxRange (const CVector3 &c_center, const CVector3 &c_half_size, COperation &c_operation)=0
	Executes an operation on all entities within the specified box range. More...

virtual void	ForEntitiesInCircleRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0
	Executes an operation on all entities within the specified circle range. More...

virtual void	ForEntitiesInRectangleRange (const CVector3 &c_center, const CVector2 &c_half_size, COperation &c_operation)=0
	Executes an operation on all entities within the specified rectangle range. More...

virtual void	ForEntitiesAlongRay (const CRay3 &c_ray, COperation &c_operation, bool b_stop_at_closest_match=false)=0
	Executes an operation on all entities that intersect the given ray. More...

Detailed Description

template<class ENTITY>
class argos::CPositionalIndex< ENTITY >

A data structure that contains positional entities.

This interface defines the basic operations a data structure can do on positional entities. It is meant to provide methods to perform operations on entities within given ranges.

See also: CPositionalEntity; CEmbodiedEntity

Definition at line 30 of file positional_index.h.

Constructor & Destructor Documentation

◆ CPositionalIndex()

template<class ENTITY>

argos::CPositionalIndex< ENTITY >::CPositionalIndex ( )

inline

Definition at line 68 of file positional_index.h.

◆ ~CPositionalIndex()

template<class ENTITY>

virtual argos::CPositionalIndex< ENTITY >::~CPositionalIndex ( )

inlinevirtual

Definition at line 69 of file positional_index.h.

Member Function Documentation

◆ AddEntity()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::AddEntity ( ENTITY & c_entity )

pure virtual

Adds an entity to this index.

Parameters

c_entity The entity to add.

Implemented in argos::CAbstractSpaceHash< ENTITY >, argos::CGrid< ENTITY >, argos::CAbstractSpaceHash< Element >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CRABEquippedEntity >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CEmbodiedEntity >, and argos::CGrid< argos::CDirectionalLEDEntity >.

◆ Destroy()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::Destroy ( )

pure virtual

Undoes whatever was done by Init().

Implements argos::CBaseConfigurableResource.

Implemented in argos::CGrid< ENTITY >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CEmbodiedEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CDirectionalLEDEntity >, and argos::CGrid< argos::CRABEquippedEntity >.

◆ ForAllEntities()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForAllEntities ( COperation & c_operation )

pure virtual

Executes an operation on all the indexed entities.

Parameters

c_operation The operation to perform.

See also: COperation

Implemented in argos::CGrid< ENTITY >.

◆ ForEntitiesAlongRay()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForEntitiesAlongRay	(	const CRay3 &	c_ray,
		COperation &	c_operation,
		bool	b_stop_at_closest_match = `false`
	)

pure virtual

Executes an operation on all entities that intersect the given ray.

When the parameter b_stop_at_closest_matches is set to true, this method stops at the closest match. Depending on the actual index implementation, there may be multiple closest matches. In this case, the operation is executed on all of them.

Parameters

c_ray	The ray.
c_operation	The operation to perform.
b_stop_at_closest_matches	Stop the computation as soon as the first match is found.

See also: CRay; COperation

Implemented in argos::CGrid< ENTITY >.

◆ ForEntitiesInBoxRange()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForEntitiesInBoxRange	(	const CVector3 &	c_center,
		const CVector3 &	c_half_size,
		COperation &	c_operation
	)

pure virtual

Executes an operation on all entities within the specified box range.

The box is axis-aligned.

Parameters

c_center	The box center.
c_half_size	The box half-size.
c_operation	The operation to perform.

See also: COperation

Implemented in argos::CGrid< ENTITY >.

◆ ForEntitiesInCircleRange()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForEntitiesInCircleRange	(	const CVector3 &	c_center,
		Real	f_radius,
		COperation &	c_operation
	)

pure virtual

Executes an operation on all entities within the specified circle range.

The circle is parallel to the XY plane.

Parameters

c_center	The circle center.
f_radius	The circle radius.
c_operation	The operation to perform.

See also: COperation

Implemented in argos::CGrid< ENTITY >.

◆ ForEntitiesInRectangleRange()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForEntitiesInRectangleRange	(	const CVector3 &	c_center,
		const CVector2 &	c_half_size,
		COperation &	c_operation
	)

pure virtual

Executes an operation on all entities within the specified rectangle range.

The rectangle is axis-aligned and parallel to the XY plane.

Parameters

c_center	The rectangle center.
c_half_size	The rectangle half-size.
c_operation	The operation to perform.

See also: COperation

Implemented in argos::CGrid< ENTITY >.

◆ ForEntitiesInSphereRange()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::ForEntitiesInSphereRange	(	const CVector3 &	c_center,
		Real	f_radius,
		COperation &	c_operation
	)

pure virtual

Executes an operation on all entities within the specified sphere range.

Parameters

c_center	The sphere center.
f_radius	The sphere radius.
c_operation	The operation to perform.

See also: COperation

Implemented in argos::CGrid< ENTITY >.

◆ GetEntitiesAt()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::GetEntitiesAt	(	CSet< ENTITY *, SEntityComparator > &	c_entities,
		const CVector3 &	c_position
	)		const

pure virtual

Puts the entities located at the given point in the passed buffer.

Parameters

c_entities	The entity set to use as buffer.
c_position	The wanted point in the space.

Implemented in argos::CGrid< ENTITY >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CRABEquippedEntity >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CEmbodiedEntity >, and argos::CGrid< argos::CDirectionalLEDEntity >.

◆ Init()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::Init ( TConfigurationNode & t_tree )

pure virtual

Initializes the resource.

Parameters

t_tree the base of the XML configuration tree to parse

Exceptions

CARGoSException if an error occurs

Implements argos::CBaseConfigurableResource.

Implemented in argos::CGrid< ENTITY >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CEmbodiedEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CDirectionalLEDEntity >, and argos::CGrid< argos::CRABEquippedEntity >.

◆ RemoveEntity()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::RemoveEntity ( ENTITY & c_entity )

pure virtual

Removes an entity from this index.

Parameters

c_entity The entity to remove.

Implemented in argos::CAbstractSpaceHash< ENTITY >, argos::CGrid< ENTITY >, argos::CAbstractSpaceHash< Element >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CRABEquippedEntity >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CEmbodiedEntity >, and argos::CGrid< argos::CDirectionalLEDEntity >.

◆ Reset()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::Reset ( )

pure virtual

Resets the resource.

Implements argos::CBaseConfigurableResource.

Implemented in argos::CGrid< ENTITY >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CEmbodiedEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CDirectionalLEDEntity >, and argos::CGrid< argos::CRABEquippedEntity >.

◆ Update()

template<class ENTITY>

virtual void argos::CPositionalIndex< ENTITY >::Update ( )

pure virtual

Updates this positional index.

Implemented in argos::CAbstractSpaceHash< ENTITY >, argos::CAbstractSpaceHash< Element >, argos::CSpaceHash< ENTITY, UPDATER >, argos::CSpaceHash< Element, Updater >, argos::CSpaceHashNative< Element, Updater >, argos::CGrid< ENTITY >, argos::CGrid< argos::CLEDEntity >, argos::CGrid< argos::CTagEntity >, argos::CGrid< argos::CEmbodiedEntity >, argos::CGrid< argos::CRadioEntity >, argos::CGrid< argos::CDirectionalLEDEntity >, and argos::CGrid< argos::CRABEquippedEntity >.
