argos::CSpaceHashNative< Element, Updater > Class Template Reference
A space hash implementation that does not rely on std::map or std::tr1:unordered_map. More...
#include <space_hash_native.h>

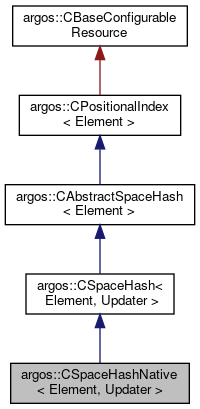

Inheritance diagram for argos::CSpaceHashNative< Element, Updater >:
Collaboration diagram for argos::CSpaceHashNative< Element, Updater >:
Public Member Functions | |
| CSpaceHashNative () | |
| Class constructor. More... | |
| ~CSpaceHashNative () | |
| Class destructor. More... | |
| void | Clear () |
| Empties all the buckets in the space hash. More... | |
| virtual void | SetSize (size_t un_size) |
| Sets the size of the space hash. More... | |
| virtual void | Update () |
| Updates the entire space hash. More... | |
| virtual void | UpdateCell (SInt32 n_i, SInt32 n_j, SInt32 n_k, Element &c_element) |
| Adds an element to a cell of the space hash. More... | |
| virtual bool | CheckCell (SInt32 n_i, SInt32 n_j, SInt32 n_k, typename CSpaceHash< Element, Updater >::TElementList &t_elements) |
| Looks for elements to process in a cell. More... | |
| virtual void | Dump (CARGoSLog &c_os) |
 Public Member Functions inherited from argos::CAbstractSpaceHash< Element > | |
| CAbstractSpaceHash () | |
| Class constructor. More... | |
| virtual | ~CAbstractSpaceHash () |
| Class destructor. More... | |
| virtual void | AddEntity (Element &c_entity) |
| Adds an entity to the space hash. More... | |
| TEntityList & | GetEntities () |
| Returns the list of entities held by this space hash. More... | |
| virtual void | RemoveEntity (Element &c_entity) |
| Remove an entity from the space hash. More... | |
| size_t | GetSize () |
| Returns the size of the space hash. More... | |
| CVector3 & | GetCellSize () |
| Returns the size of the cells of the space hash. More... | |
| CVector3 & | GetInvCellSize () |
| Returns the inverse size of the cells of the space hash. More... | |
| virtual void | SetCellSize (const CVector3 &c_cell_size) |
| Sets the size of the cells of the space hash. More... | |
| virtual SInt32 | SpaceToHashTable (Real f_coord, UInt32 un_axis) |
| Converts a single space coordinate into a space hash cell coordinate. More... | |
| virtual void | SpaceToHashTable (SInt32 &n_i, SInt32 &n_j, SInt32 &n_k, const CVector3 &c_pos) |
| Converts a space position into a space hash cell The values are written into n_i, n_j, and n_k. More... | |
| virtual Real | HashTableToSpace (SInt32 n_coord, UInt32 un_axis) |
| Converts a single space hash cell coordinate into a space coordinate. More... | |
| virtual bool | CheckCell (SInt32 n_i, SInt32 n_j, SInt32 n_k, TEntityList &t_entities)=0 |
| Looks for entities to process in a cell. More... | |
| Public Member Functions inherited from argos::CPositionalIndex< Element > | |
| CPositionalIndex () | |
| virtual | ~CPositionalIndex () |
| virtual void | Init (TConfigurationNode &t_tree)=0 |
| Initializes the resource. More... | |
| virtual void | Reset ()=0 |
| Resets the resource. More... | |
| virtual void | Destroy ()=0 |
| Undoes whatever was done by Init(). More... | |
| virtual void | GetEntitiesAt (CSet< Element *, SEntityComparator > &c_entities, const CVector3 &c_position) const=0 |
| Puts the entities located at the given point in the passed buffer. More... | |
| virtual void | ForAllEntities (COperation &c_operation)=0 |
| Executes an operation on all the indexed entities. More... | |
| virtual void | ForEntitiesInSphereRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0 |
| Executes an operation on all entities within the specified sphere range. More... | |
| virtual void | ForEntitiesInBoxRange (const CVector3 &c_center, const CVector3 &c_half_size, COperation &c_operation)=0 |
| Executes an operation on all entities within the specified box range. More... | |
| virtual void | ForEntitiesInCircleRange (const CVector3 &c_center, Real f_radius, COperation &c_operation)=0 |
| Executes an operation on all entities within the specified circle range. More... | |
| virtual void | ForEntitiesInRectangleRange (const CVector3 &c_center, const CVector2 &c_half_size, COperation &c_operation)=0 |
| Executes an operation on all entities within the specified rectangle range. More... | |
| virtual void | ForEntitiesAlongRay (const CRay3 &c_ray, COperation &c_operation, bool b_stop_at_closest_match=false)=0 |
| Executes an operation on all entities that intersect the given ray. More... | |
Additional Inherited Members | |
| Public Types inherited from argos::CAbstractSpaceHash< Element > | |
| typedef CSet< Element * > | TEntityList |
| Type definition for the list of entities held by the space hash. More... | |
| Protected Member Functions inherited from argos::CAbstractSpaceHash< Element > | |
| UInt32 | CoordinateHash (SInt32 n_i, SInt32 n_j, SInt32 n_k) |
| Calculates the hash of a space hash coordinate. More... | |
Detailed Description
template<class Element, class Updater>
class argos::CSpaceHashNative< Element, Updater >
A space hash implementation that does not rely on std::map or std::tr1:unordered_map.
It is much more performant than the standard hash table implementations.
Definition at line 19 of file space_hash_native.h.
Constructor & Destructor Documentation
◆ CSpaceHashNative()
template<class Element , class Updater >
|
inline |
Class constructor.
The size of the space hash (the number of buckets) is set to zero. To be able to use the space hash, you first must set the size to an appropriate value.
- See also
- SetSize()
Definition at line 166 of file space_hash_native.h.
◆ ~CSpaceHashNative()
template<class Element , class Updater >
|
inline |
Class destructor.
Definition at line 173 of file space_hash_native.h.
Member Function Documentation
◆ CheckCell()
template<class Element , class Updater >
|
inlinevirtual |
Looks for elements to process in a cell.
- Parameters
-
n_i The X coordinate of the space hash cell. n_j The Y coordinate of the space hash cell. n_k The Z coordinate of the space hash cell. The list of elements to process.
Definition at line 249 of file space_hash_native.h.
◆ Clear()
template<class Element , class Updater >
|
inline |
Empties all the buckets in the space hash.
Definition at line 181 of file space_hash_native.h.
◆ Dump()
template<class Element , class Updater >
|
inlinevirtual |
Implements argos::CAbstractSpaceHash< Element >.
Definition at line 282 of file space_hash_native.h.
◆ SetSize()
template<class Element , class Updater >
|
inlinevirtual |
Sets the size of the space hash.
The size corresponds to the number of buckets.
- Parameters
-
un_size The size of the space hash.
Reimplemented from argos::CAbstractSpaceHash< Element >.
Definition at line 192 of file space_hash_native.h.
◆ Update()
template<class Element , class Updater >
|
inlinevirtual |
Updates the entire space hash.
It calls the updater for all the elements held by the space hash.
- See also
- CSpaceHashUpdater
Reimplemented from argos::CSpaceHash< Element, Updater >.
Definition at line 203 of file space_hash_native.h.
◆ UpdateCell()
template<class Element , class Updater >
|
inlinevirtual |
Adds an element to a cell of the space hash.
- Parameters
-
n_x The x coordinate of the cell. n_y The y coordinate of the cell. n_z The z coordinate of the cell. c_element The element to add.
Implements argos::CAbstractSpaceHash< Element >.
Definition at line 217 of file space_hash_native.h.
