The ARGoS Website

argos::CFootBotTurretEntity Class Reference

#include <footbot_turret_entity.h>

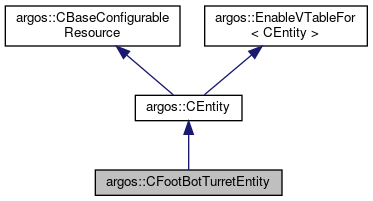

Inheritance diagram for argos::CFootBotTurretEntity:
Collaboration diagram for argos::CFootBotTurretEntity:

Public Types

enum  EMode { MODE_OFF, MODE_PASSIVE, MODE_SPEED_CONTROL, MODE_POSITION_CONTROL }

- Public Types inherited from argos::CEntity
typedef std::vector< CEntity * > TVector
 A vector of entities. More...

typedef unordered_map< std::string, CEntity * > TMap
 A map of entities. More...

typedef std::multimap< std::string, CEntity * > TMultiMap
 A multi-map of entities. More...


Public Member Functions

 ENABLE_VTABLE ()

 CFootBotTurretEntity (CComposableEntity *pc_parent)

 CFootBotTurretEntity (CComposableEntity *pc_parent, const std::string &str_id, SAnchor &s_anchor)

virtual void Init (TConfigurationNode &t_tree)
 Initializes the state of the entity from the XML configuration tree. More...

virtual void Reset ()
 Resets the state of the entity to whatever it was after Init() or the standalone constructor was called. More...

virtual void Update ()
 Updates the state of this entity. More...

UInt32 GetMode () const

void SetMode (UInt32 un_mode)

CRadians GetRotation () const

Real GetRotationSpeed () const

const CRadiansGetDesiredRotation () const

Real GetDesiredRotationSpeed () const

void SetDesiredRotation (const CRadians &c_rotation)

void SetDesiredRotationSpeed (Real f_speed)

virtual std::string GetTypeDescription () const
 Returns a string label for this class. More...

- Public Member Functions inherited from argos::CEntity
 ENABLE_VTABLE ()

 CEntity (CComposableEntity *pc_parent)
 Class constructor. More...

 CEntity (CComposableEntity *pc_parent, const std::string &str_id)
 Class constructor. More...

virtual ~CEntity ()
 Class destructor. More...

virtual void Destroy ()
 Destroys the entity, undoing whatever was done by Init() or by the standalone constructor. More...

const std::string & GetId () const
 Returns the id of this entity. More...

std::string GetContext () const
 Returns the context of this entity. More...

bool HasParent () const
 Returns true if this entity has a parent. More...

CEntityGetRootEntity ()
 Returns the root entity containing this entity. More...

const CEntityGetRootEntity () const
 Returns the root entity containing this entity. More...

CComposableEntityGetParent ()
 Returns this entity's parent. More...

const CComposableEntityGetParent () const
 Returns this entity's parent. More...

void SetParent (CComposableEntity &c_parent)
 Sets this entity's parent. More...

ssize_t GetIndex () const
 Returns the entity index. More...

void SetIndex (ssize_t n_idx)
 Sets the entity index. More...

bool IsEnabled () const
 Returns true if the entity is enabled. More...

void Enable ()
 Enables the entity. More...

void Disable ()
 Disables the entity. More...

virtual void SetEnabled (bool b_enabled)
 Enables or disables an entity. More...

TConfigurationNodeGetConfigurationNode ()
 Returns a pointer to the configuration node that was used to create this entity. More...

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::EnableVTableFor< CEntity >
size_t GetTagHelper (const DERIVED *) const


Detailed Description

Definition at line 20 of file footbot_turret_entity.h.

Member Enumeration Documentation

◆ EMode

Enumerator
MODE_OFF
MODE_PASSIVE
MODE_SPEED_CONTROL
MODE_POSITION_CONTROL

Definition at line 26 of file footbot_turret_entity.h.

Constructor & Destructor Documentation

◆ CFootBotTurretEntity() [1/2]

argos::CFootBotTurretEntity::CFootBotTurretEntity ( CComposableEntity pc_parent)

Definition at line 17 of file footbot_turret_entity.cpp.

◆ CFootBotTurretEntity() [2/2]

argos::CFootBotTurretEntity::CFootBotTurretEntity ( CComposableEntity pc_parent,
const std::string &  str_id,
SAnchor s_anchor
)

Definition at line 27 of file footbot_turret_entity.cpp.

Member Function Documentation

◆ ENABLE_VTABLE()

argos::CFootBotTurretEntity::ENABLE_VTABLE ( )

◆ GetDesiredRotation()

const CRadians & argos::CFootBotTurretEntity::GetDesiredRotation ( ) const

Definition at line 89 of file footbot_turret_entity.cpp.

◆ GetDesiredRotationSpeed()

Real argos::CFootBotTurretEntity::GetDesiredRotationSpeed ( ) const

Definition at line 96 of file footbot_turret_entity.cpp.

◆ GetMode()

UInt32 argos::CFootBotTurretEntity::GetMode ( ) const
inline

Definition at line 47 of file footbot_turret_entity.h.

◆ GetRotation()

CRadians argos::CFootBotTurretEntity::GetRotation ( ) const

Definition at line 73 of file footbot_turret_entity.cpp.

◆ GetRotationSpeed()

Real argos::CFootBotTurretEntity::GetRotationSpeed ( ) const

Definition at line 82 of file footbot_turret_entity.cpp.

◆ GetTypeDescription()

virtual std::string argos::CFootBotTurretEntity::GetTypeDescription ( ) const
inlinevirtual

Returns a string label for this class.

Returns
A string label for this class.

Reimplemented from argos::CEntity.

Definition at line 67 of file footbot_turret_entity.h.

◆ Init()

void argos::CFootBotTurretEntity::Init ( TConfigurationNode t_tree)
virtual

Initializes the state of the entity from the XML configuration tree.

If the id of the entity has not been set yet, this method sets an id for the entity. If the entity has no parent, this method parses the passed XML tree and looks for the id attribute, setting its value as id. If, instead, this entity has a parent, the id is set as GetParent().GetId() + "." + GetTypeDescription().

Exceptions
CARGoSExceptionif a parse error occurred

Reimplemented from argos::CEntity.

Definition at line 39 of file footbot_turret_entity.cpp.

◆ Reset()

void argos::CFootBotTurretEntity::Reset ( )
virtual

Resets the state of the entity to whatever it was after Init() or the standalone constructor was called.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 45 of file footbot_turret_entity.cpp.

◆ SetDesiredRotation()

void argos::CFootBotTurretEntity::SetDesiredRotation ( const CRadians c_rotation)

Definition at line 103 of file footbot_turret_entity.cpp.

◆ SetDesiredRotationSpeed()

void argos::CFootBotTurretEntity::SetDesiredRotationSpeed ( Real  f_speed)

Definition at line 111 of file footbot_turret_entity.cpp.

◆ SetMode()

void argos::CFootBotTurretEntity::SetMode ( UInt32  un_mode)
inline

Definition at line 51 of file footbot_turret_entity.h.

◆ Update()

void argos::CFootBotTurretEntity::Update ( )
virtual

Updates the state of this entity.

The default implementation of this method does nothing.

Reimplemented from argos::CEntity.

Definition at line 59 of file footbot_turret_entity.cpp.
