argos::CProximityDefaultSensor Class Reference

#include <proximity_default_sensor.h>

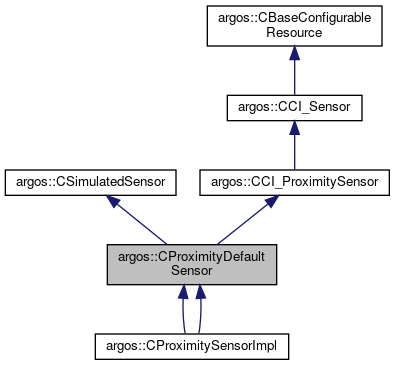

Inheritance diagram for argos::CProximityDefaultSensor:

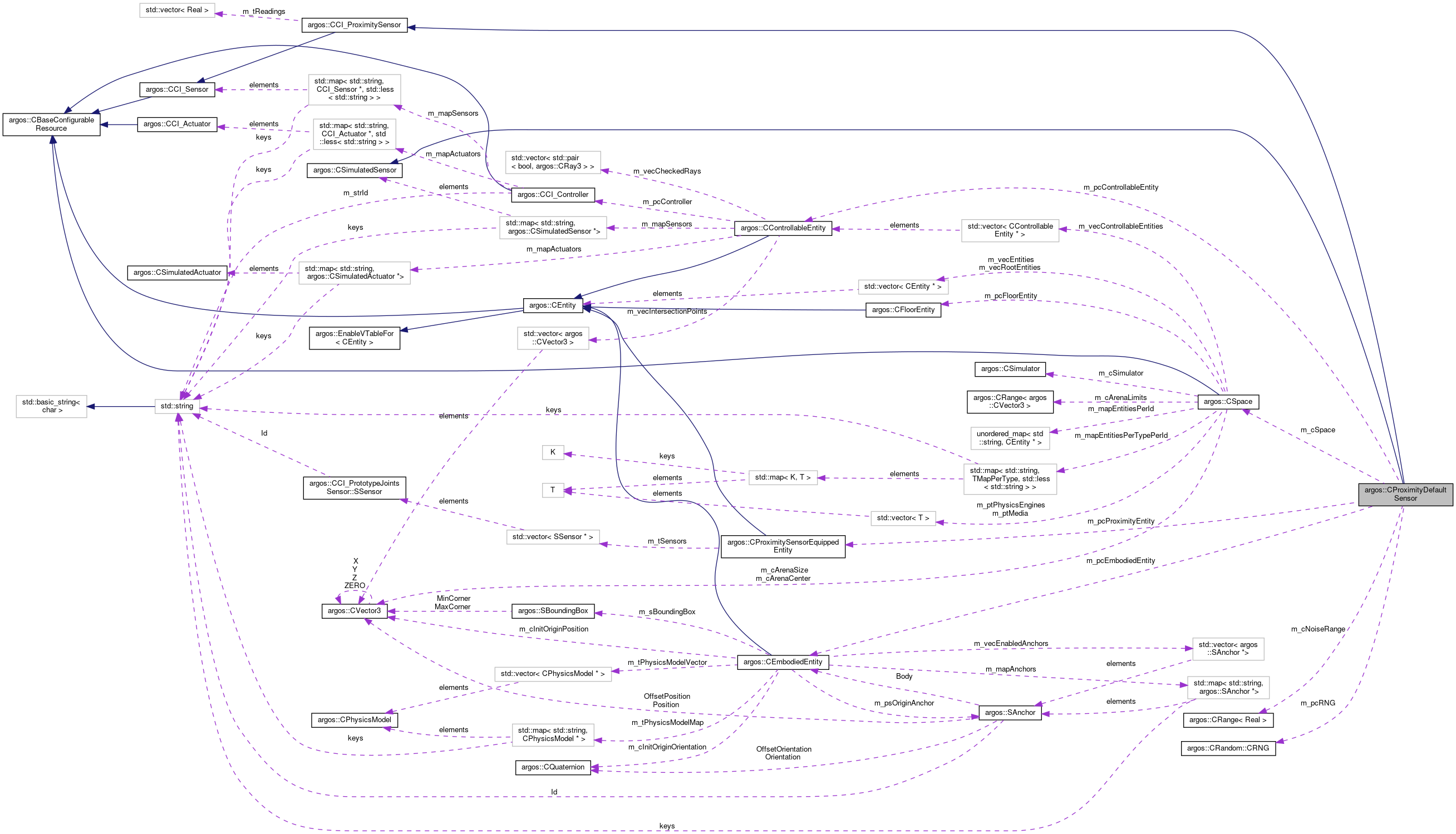

Collaboration diagram for argos::CProximityDefaultSensor:

Public Member Functions
	CProximityDefaultSensor ()
virtual	~CProximityDefaultSensor ()
virtual void	SetRobot (CComposableEntity &c_entity)
	Sets the entity associated to this sensor. More...
virtual void	Init (TConfigurationNode &t_tree)
	Initializes the sensor from the XML configuration tree. More...
virtual void	Update ()
	Updates the state of the entity associated to this sensor. More...
virtual void	Reset ()
	Resets the sensor to the state it had just after Init(). More...
virtual Real	CalculateReading (Real f_distance)
	Calculates the proximity reading when the closest occluding object is located as the given distance. More...
Public Member Functions inherited from argos::CSimulatedSensor
virtual	~CSimulatedSensor ()
	Class destructor. More...
Public Member Functions inherited from argos::CCI_ProximitySensor
virtual	~CCI_ProximitySensor ()
const std::vector< Real > &	GetReadings () const
Public Member Functions inherited from argos::CCI_Sensor
virtual	~CCI_Sensor ()
	Class destructor. More...
virtual void	Destroy ()
	Destroys the sensor. More...
Public Member Functions inherited from argos::CBaseConfigurableResource
virtual	~CBaseConfigurableResource ()
	Class destructor. More...

Protected Attributes
CEmbodiedEntity *	m_pcEmbodiedEntity
	Reference to embodied entity associated to this sensor. More...
CProximitySensorEquippedEntity *	m_pcProximityEntity
	Reference to proximity sensor equipped entity associated to this sensor. More...
CControllableEntity *	m_pcControllableEntity
	Reference to controllable entity associated to this sensor. More...
bool	m_bShowRays
	Flag to show rays in the simulator. More...
CRandom::CRNG *	m_pcRNG
	Random number generator. More...
bool	m_bAddNoise
	Whether to add noise or not. More...
CRange< Real >	m_cNoiseRange
	Noise range. More...
CSpace &	m_cSpace
	Reference to the space. More...
Protected Attributes inherited from argos::CCI_ProximitySensor
std::vector< Real >	m_tReadings

Additional Inherited Members
Public Types inherited from argos::CCI_Sensor
typedef std::map< std::string, CCI_Sensor *, std::less< std::string > >	TMap

Detailed Description

Definition at line 26 of file proximity_default_sensor.h.

Constructor & Destructor Documentation

CProximityDefaultSensor()

argos::CProximityDefaultSensor::CProximityDefaultSensor

(

)

Definition at line 24 of file proximity_default_sensor.cpp.

~CProximityDefaultSensor()

virtual argos::CProximityDefaultSensor::~CProximityDefaultSensor ( )

inlinevirtual

Definition at line 33 of file proximity_default_sensor.h.

Member Function Documentation

CalculateReading()

Real argos::CProximityDefaultSensor::CalculateReading ( Real  f_distance )

virtual

Calculates the proximity reading when the closest occluding object is located as the given distance.

Parameters

f_distance

The distance of the closest occluding object in meters

Returns

A value in the range [0:1], where 0 means that the object is too far to be sensed, and 1 means the object is so close that it saturates the sensor.

Reimplemented in argos::CProximitySensorImpl, and argos::CProximitySensorImpl.

Definition at line 133 of file proximity_default_sensor.cpp.

Init()

void argos::CProximityDefaultSensor::Init ( TConfigurationNode &  t_node )

virtual

Initializes the sensor from the XML configuration tree.

The default implementation of this method does nothing.

Parameters

t_node

The XML configuration tree relative to this sensor.

See also

Reset()

Destroy()

Reimplemented from argos::CCI_Sensor.

Definition at line 49 of file proximity_default_sensor.cpp.

Reset()

void argos::CProximityDefaultSensor::Reset ( )

virtual

Resets the sensor to the state it had just after Init().

The default implementation of this method does nothing.

See also

Init()

Destroy()

Reimplemented from argos::CCI_Sensor.

Definition at line 124 of file proximity_default_sensor.cpp.

SetRobot()

void argos::CProximityDefaultSensor::SetRobot ( CComposableEntity &  c_entity )

virtual

Sets the entity associated to this sensor.

When a controller is created, all the sensors and actuators are created, too. This function is called right before the Init() method of the sensor is called.

Parameters

c_entity

The entity to associate to this sensor.

See also

CComposableEntity

CControllableEntity::SetController()

CCI_Sensor::Init()

Implements argos::CSimulatedSensor.

Definition at line 34 of file proximity_default_sensor.cpp.

Update()

void argos::CProximityDefaultSensor::Update ( )

virtual

Updates the state of the entity associated to this sensor.

Implements argos::CSimulatedSensor.

Definition at line 75 of file proximity_default_sensor.cpp.

Member Data Documentation

m_bAddNoise

bool argos::CProximityDefaultSensor::m_bAddNoise

protected

Whether to add noise or not.

Definition at line 68 of file proximity_default_sensor.h.

m_bShowRays

bool argos::CProximityDefaultSensor::m_bShowRays

protected

Flag to show rays in the simulator.

Definition at line 62 of file proximity_default_sensor.h.

m_cNoiseRange

CRange<Real> argos::CProximityDefaultSensor::m_cNoiseRange

protected

Noise range.

Definition at line 71 of file proximity_default_sensor.h.

m_cSpace

CSpace& argos::CProximityDefaultSensor::m_cSpace

protected

Reference to the space.

Definition at line 74 of file proximity_default_sensor.h.

m_pcControllableEntity

CControllableEntity* argos::CProximityDefaultSensor::m_pcControllableEntity

protected

Reference to controllable entity associated to this sensor.

Definition at line 59 of file proximity_default_sensor.h.

m_pcEmbodiedEntity

CEmbodiedEntity* argos::CProximityDefaultSensor::m_pcEmbodiedEntity

protected

Reference to embodied entity associated to this sensor.

Definition at line 53 of file proximity_default_sensor.h.

m_pcProximityEntity

CProximitySensorEquippedEntity* argos::CProximityDefaultSensor::m_pcProximityEntity

protected

Reference to proximity sensor equipped entity associated to this sensor.

Definition at line 56 of file proximity_default_sensor.h.

m_pcRNG

CRandom::CRNG* argos::CProximityDefaultSensor::m_pcRNG

protected

Random number generator.

Definition at line 65 of file proximity_default_sensor.h.
