argos::CFootBotBaseGroundRotZOnlySensor Class Reference

#include <footbot_base_ground_rotzonly_sensor.h>

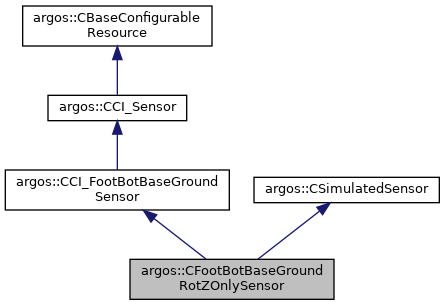

Inheritance diagram for argos::CFootBotBaseGroundRotZOnlySensor:

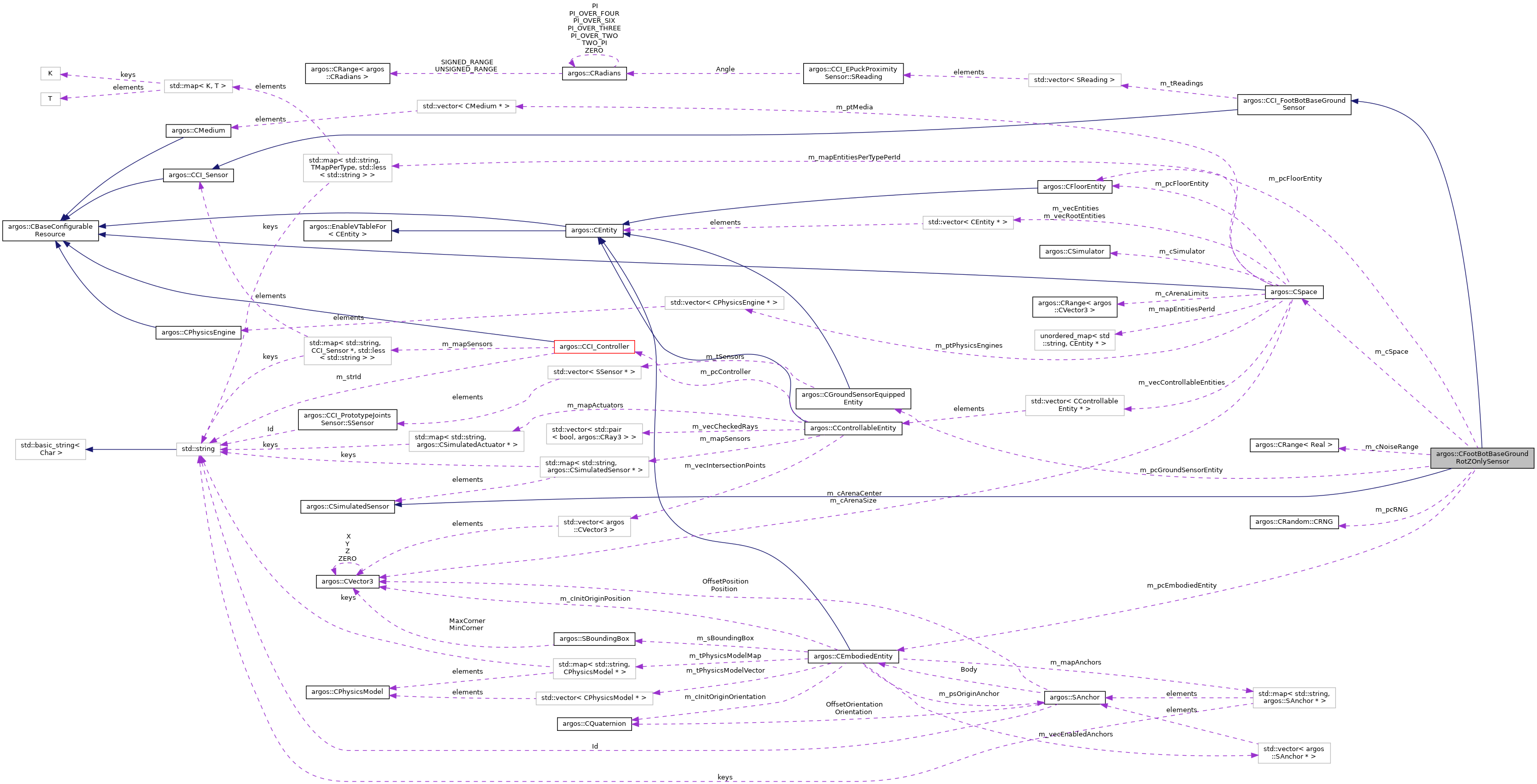

Collaboration diagram for argos::CFootBotBaseGroundRotZOnlySensor:

Public Member Functions

 CFootBotBaseGroundRotZOnlySensor ()

virtual ~CFootBotBaseGroundRotZOnlySensor ()

virtual void SetRobot (CComposableEntity &c_entity)
 Sets the entity associated to this sensor. More...

virtual void Init (TConfigurationNode &t_tree)
 Initializes the sensor from the XML configuration tree. More...

virtual void Update ()
 Updates the state of the entity associated to this sensor, if the sensor is currently enabled. More...

virtual void Reset ()
 Resets the sensor to the state it had just after Init(). More...

- Public Member Functions inherited from argos::CCI_FootBotBaseGroundSensor
 CCI_FootBotBaseGroundSensor ()

virtual ~CCI_FootBotBaseGroundSensor ()

const TReadingsGetReadings () const

- Public Member Functions inherited from argos::CCI_Sensor
virtual ~CCI_Sensor ()
 Class destructor. More...

virtual void Destroy ()
 Destroys the sensor. More...

virtual void Enable ()
 Enables updating of sensor information in the event loop. More...

virtual void Disable ()
 Disables updating of sensor information in the event loop. More...

bool IsEnabled () const

bool IsDisabled () const

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...

- Public Member Functions inherited from argos::CSimulatedSensor
virtual ~CSimulatedSensor ()
 Class destructor. More...


Protected Attributes

CEmbodiedEntitym_pcEmbodiedEntity
 Reference to embodied entity associated to this sensor. More...

CFloorEntitym_pcFloorEntity
 Reference to floor entity. More...

CGroundSensorEquippedEntitym_pcGroundSensorEntity
 Reference to ground sensor equipped entity associated to this sensor. More...

CRandom::CRNGm_pcRNG
 Random number generator. More...

bool m_bAddNoise
 Whether to add noise or not. More...

CRange< Realm_cNoiseRange
 Noise range. More...

CSpacem_cSpace
 Reference to the space. More...

- Protected Attributes inherited from argos::CCI_FootBotBaseGroundSensor
TReadings m_tReadings


Additional Inherited Members

- Public Types inherited from argos::CCI_FootBotBaseGroundSensor
typedef std::vector< SReadingTReadings

- Public Types inherited from argos::CCI_Sensor
typedef std::map< std::string, CCI_Sensor *, std::less< std::string > > TMap


Detailed Description

Definition at line 27 of file footbot_base_ground_rotzonly_sensor.h.

Constructor & Destructor Documentation

◆ CFootBotBaseGroundRotZOnlySensor()

argos::CFootBotBaseGroundRotZOnlySensor::CFootBotBaseGroundRotZOnlySensor ( )

Definition at line 25 of file footbot_base_ground_rotzonly_sensor.cpp.

◆ ~CFootBotBaseGroundRotZOnlySensor()

virtual argos::CFootBotBaseGroundRotZOnlySensor::~CFootBotBaseGroundRotZOnlySensor ( )
inlinevirtual

Definition at line 34 of file footbot_base_ground_rotzonly_sensor.h.

Member Function Documentation

◆ Init()

void argos::CFootBotBaseGroundRotZOnlySensor::Init ( TConfigurationNode t_node)
virtual

Initializes the sensor from the XML configuration tree.

The default implementation of this method does nothing.

Parameters
t_nodeThe XML configuration tree relative to this sensor.
See also
Reset()
Destroy()

Reimplemented from argos::CCI_Sensor.

Definition at line 46 of file footbot_base_ground_rotzonly_sensor.cpp.

◆ Reset()

void argos::CFootBotBaseGroundRotZOnlySensor::Reset ( )
virtual

Resets the sensor to the state it had just after Init().

The default implementation of this method does nothing.

See also
Init()
Destroy()

Reimplemented from argos::CCI_Sensor.

Definition at line 112 of file footbot_base_ground_rotzonly_sensor.cpp.

◆ SetRobot()

void argos::CFootBotBaseGroundRotZOnlySensor::SetRobot ( CComposableEntity c_entity)
virtual

Sets the entity associated to this sensor.

When a controller is created, all the sensors and actuators are created, too. This function is called right before the Init() method of the sensor is called.

Parameters
c_entityThe entity to associate to this sensor.
See also
CComposableEntity
CControllableEntity::SetController()
CCI_Sensor::Init()

Implements argos::CSimulatedSensor.

Definition at line 36 of file footbot_base_ground_rotzonly_sensor.cpp.

◆ Update()

void argos::CFootBotBaseGroundRotZOnlySensor::Update ( )
virtual

Updates the state of the entity associated to this sensor, if the sensor is currently enabled.

If it is disabled, then this function should do nothing.

Implements argos::CSimulatedSensor.

Definition at line 72 of file footbot_base_ground_rotzonly_sensor.cpp.

Member Data Documentation

◆ m_bAddNoise

bool argos::CFootBotBaseGroundRotZOnlySensor::m_bAddNoise
protected

Whether to add noise or not.

Definition at line 59 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_cNoiseRange

CRange<Real> argos::CFootBotBaseGroundRotZOnlySensor::m_cNoiseRange
protected

Noise range.

Definition at line 62 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_cSpace

CSpace& argos::CFootBotBaseGroundRotZOnlySensor::m_cSpace
protected

Reference to the space.

Definition at line 65 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_pcEmbodiedEntity

CEmbodiedEntity* argos::CFootBotBaseGroundRotZOnlySensor::m_pcEmbodiedEntity
protected

Reference to embodied entity associated to this sensor.

Definition at line 47 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_pcFloorEntity

CFloorEntity* argos::CFootBotBaseGroundRotZOnlySensor::m_pcFloorEntity
protected

Reference to floor entity.

Definition at line 50 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_pcGroundSensorEntity

CGroundSensorEquippedEntity* argos::CFootBotBaseGroundRotZOnlySensor::m_pcGroundSensorEntity
protected

Reference to ground sensor equipped entity associated to this sensor.

Definition at line 53 of file footbot_base_ground_rotzonly_sensor.h.

◆ m_pcRNG

CRandom::CRNG* argos::CFootBotBaseGroundRotZOnlySensor::m_pcRNG
protected

Random number generator.

Definition at line 56 of file footbot_base_ground_rotzonly_sensor.h.
