argos::CBatteryDischargeModel Class Referenceabstract

The discharge model dictates how the battery discharges over time. More...

#include <battery_equipped_entity.h>

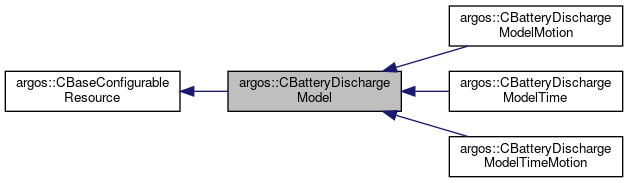

Inheritance diagram for argos::CBatteryDischargeModel:

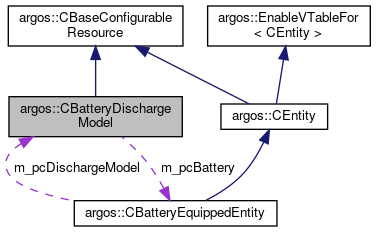

Collaboration diagram for argos::CBatteryDischargeModel:

Public Member Functions

 CBatteryDischargeModel ()

virtual ~CBatteryDischargeModel ()

virtual void Init (TConfigurationNode &t_tree)
 Initializes the resource. More...

virtual void Reset ()
 Resets the resource. More...

virtual void Destroy ()
 Undoes whatever was done by Init(). More...

virtual void SetBattery (CBatteryEquippedEntity *pc_battery)

virtual void operator() ()=0

- Public Member Functions inherited from argos::CBaseConfigurableResource
virtual ~CBaseConfigurableResource ()
 Class destructor. More...


Protected Attributes

CBatteryEquippedEntitym_pcBattery


Detailed Description

The discharge model dictates how the battery discharges over time.

Definition at line 102 of file battery_equipped_entity.h.

Constructor & Destructor Documentation

◆ CBatteryDischargeModel()

argos::CBatteryDischargeModel::CBatteryDischargeModel ( )

Definition at line 118 of file battery_equipped_entity.cpp.

◆ ~CBatteryDischargeModel()

argos::CBatteryDischargeModel::~CBatteryDischargeModel ( )
virtual

Definition at line 125 of file battery_equipped_entity.cpp.

Member Function Documentation

◆ Destroy()

virtual void argos::CBatteryDischargeModel::Destroy ( )
inlinevirtual

Undoes whatever was done by Init().

Implements argos::CBaseConfigurableResource.

Definition at line 114 of file battery_equipped_entity.h.

◆ Init()

virtual void argos::CBatteryDischargeModel::Init ( TConfigurationNode t_tree)
inlinevirtual

Initializes the resource.

Parameters
t_treethe base of the XML configuration tree to parse
Exceptions
CARGoSExceptionif an error occurs

Implements argos::CBaseConfigurableResource.

Reimplemented in argos::CBatteryDischargeModelTimeMotion, argos::CBatteryDischargeModelMotion, and argos::CBatteryDischargeModelTime.

Definition at line 110 of file battery_equipped_entity.h.

◆ operator()()

virtual void argos::CBatteryDischargeModel::operator() ( )
pure virtual

◆ Reset()

virtual void argos::CBatteryDischargeModel::Reset ( )
inlinevirtual

Resets the resource.

Implements argos::CBaseConfigurableResource.

Definition at line 112 of file battery_equipped_entity.h.

◆ SetBattery()

void argos::CBatteryDischargeModel::SetBattery ( CBatteryEquippedEntity pc_battery)
virtual

Member Data Documentation

◆ m_pcBattery

CBatteryEquippedEntity* argos::CBatteryDischargeModel::m_pcBattery
protected

Definition at line 122 of file battery_equipped_entity.h.
