The ARGoS Website

argos::CDynamics3DMultiBodyObjectModel Class Reference

#include <dynamics3d_multi_body_object_model.h>

Inheritance diagram for argos::CDynamics3DMultiBodyObjectModel:

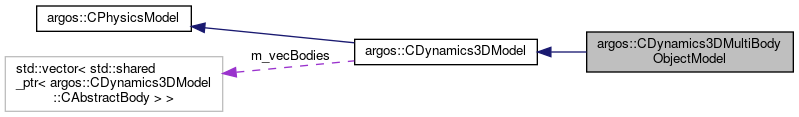

Collaboration diagram for argos::CDynamics3DMultiBodyObjectModel:

Classes

class  CBase

class  CLink


Public Member Functions

 CDynamics3DMultiBodyObjectModel (CDynamics3DEngine &c_engine, CComposableEntity &c_entity, UInt32 un_num_links, bool b_fixed_base)

virtual ~CDynamics3DMultiBodyObjectModel ()

virtual void Reset ()

virtual void MoveTo (const CVector3 &c_position, const CQuaternion &c_orientation)

virtual void CalculateBoundingBox ()
 Calculates the axis-aligned box that contains the entire physics model. More...

virtual void AddToWorld (btMultiBodyDynamicsWorld &c_world)

virtual void RemoveFromWorld (btMultiBodyDynamicsWorld &c_world)

btMultiBody & GetMultiBody ()

virtual void UpdateOriginAnchor (SAnchor &s_anchor)

- Public Member Functions inherited from argos::CDynamics3DModel
 CDynamics3DModel (CDynamics3DEngine &c_engine, CComposableEntity &c_entity)

virtual ~CDynamics3DModel ()

CDynamics3DEngineGetEngine ()

const CDynamics3DEngineGetEngine () const

CComposableEntityGetComposableEntity ()

const CComposableEntityGetComposableEntity () const

virtual bool IsCollidingWithSomething () const
 Returns true if this model is colliding with another model. More...

virtual void UpdateEntityStatus ()
 Updates the status of the associated entity. More...

virtual void UpdateFromEntityStatus ()
 Updates the state of this model from the status of the associated entity. More...

std::vector< std::shared_ptr< CAbstractBody > > & GetBodies ()

- Public Member Functions inherited from argos::CPhysicsModel
 CPhysicsModel (CPhysicsEngine &c_engine, CEmbodiedEntity &c_entity)

virtual ~CPhysicsModel ()

CPhysicsEngineGetEngine ()
 Returns the physics engine associated to this physics model. More...

CEmbodiedEntityGetEmbodiedEntity ()
 Returns the embodied entity associated to this physics model. More...

const CEmbodiedEntityGetEmbodiedEntity () const
 Returns the embodied entity associated to this physics model. More...

virtual void UpdatePhysics ()
 Performs extra work just before the physics update takes place. More...

const SBoundingBoxGetBoundingBox () const
 Returns an axis-aligned box that contains the physics model. More...

virtual void CalculateAnchors ()
 Calculates the anchors associated to this model. More...

SBoundingBoxGetBoundingBox ()
 Returns an axis-aligned box that contains the physics model. More...

template<typename MODEL >
void RegisterAnchorMethod (const SAnchor &s_anchor, void(MODEL::*pt_method)(SAnchor &))
 Registers an anchor method. More...


Protected Attributes

btMultiBody m_cMultiBody

UInt32 m_unNumLinks

bool m_bFixedBase

- Protected Attributes inherited from argos::CDynamics3DModel
std::vector< std::shared_ptr< CAbstractBody > > m_vecBodies


Additional Inherited Members

- Public Types inherited from argos::CDynamics3DModel
typedef std::map< std::string, CDynamics3DModel * > TMap

- Public Types inherited from argos::CPhysicsModel
typedef std::map< std::string, CPhysicsModel * > TMap

typedef std::vector< CPhysicsModel * > TVector


Detailed Description

Definition at line 21 of file dynamics3d_multi_body_object_model.h.

Constructor & Destructor Documentation

◆ CDynamics3DMultiBodyObjectModel()

argos::CDynamics3DMultiBodyObjectModel::CDynamics3DMultiBodyObjectModel ( CDynamics3DEngine c_engine,
CComposableEntity c_entity,
UInt32  un_num_links,
bool  b_fixed_base
)

Definition at line 18 of file dynamics3d_multi_body_object_model.cpp.

◆ ~CDynamics3DMultiBodyObjectModel()

virtual argos::CDynamics3DMultiBodyObjectModel::~CDynamics3DMultiBodyObjectModel ( )
inlinevirtual

Definition at line 87 of file dynamics3d_multi_body_object_model.h.

Member Function Documentation

◆ AddToWorld()

void argos::CDynamics3DMultiBodyObjectModel::AddToWorld ( btMultiBodyDynamicsWorld &  c_world)
virtual

◆ CalculateBoundingBox()

void argos::CDynamics3DMultiBodyObjectModel::CalculateBoundingBox ( )
virtual

Calculates the axis-aligned box that contains the entire physics model.

The bounding box is often called AABB.

Implements argos::CPhysicsModel.

Definition at line 80 of file dynamics3d_multi_body_object_model.cpp.

◆ GetMultiBody()

btMultiBody& argos::CDynamics3DMultiBodyObjectModel::GetMultiBody ( )
inline

Definition at line 100 of file dynamics3d_multi_body_object_model.h.

◆ MoveTo()

void argos::CDynamics3DMultiBodyObjectModel::MoveTo ( const CVector3 c_position,
const CQuaternion c_orientation
)
virtual

Moves the entity to the wanted position and orientation within this engine. When you create a new model, you must implement this method. Don't forget to call UpdateEntityStatus() after you've changed the position.

This method should never be called directly from user code. It is called internally by CEmbodiedEntity::MoveTo(), which is meant to be called from user code.

CEmbodiedEntity::MoveTo() never calls this method if the embodied entity is static. This is because static entities cannot be moved around. Thus, there's no need in your code to check whether the associated entity is static.

Parameters
c_positionThe wanted position.
c_orientationThe wanted orientation.

Implements argos::CPhysicsModel.

Definition at line 106 of file dynamics3d_multi_body_object_model.cpp.

◆ RemoveFromWorld()

void argos::CDynamics3DMultiBodyObjectModel::RemoveFromWorld ( btMultiBodyDynamicsWorld &  c_world)
virtual

◆ Reset()

void argos::CDynamics3DMultiBodyObjectModel::Reset ( )
virtual

◆ UpdateOriginAnchor()

void argos::CDynamics3DMultiBodyObjectModel::UpdateOriginAnchor ( SAnchor s_anchor)
virtual

Definition at line 141 of file dynamics3d_multi_body_object_model.cpp.

Member Data Documentation

◆ m_bFixedBase

bool argos::CDynamics3DMultiBodyObjectModel::m_bFixedBase
protected

Definition at line 110 of file dynamics3d_multi_body_object_model.h.

◆ m_cMultiBody

btMultiBody argos::CDynamics3DMultiBodyObjectModel::m_cMultiBody
protected

Definition at line 108 of file dynamics3d_multi_body_object_model.h.

◆ m_unNumLinks

UInt32 argos::CDynamics3DMultiBodyObjectModel::m_unNumLinks
protected

Definition at line 109 of file dynamics3d_multi_body_object_model.h.
